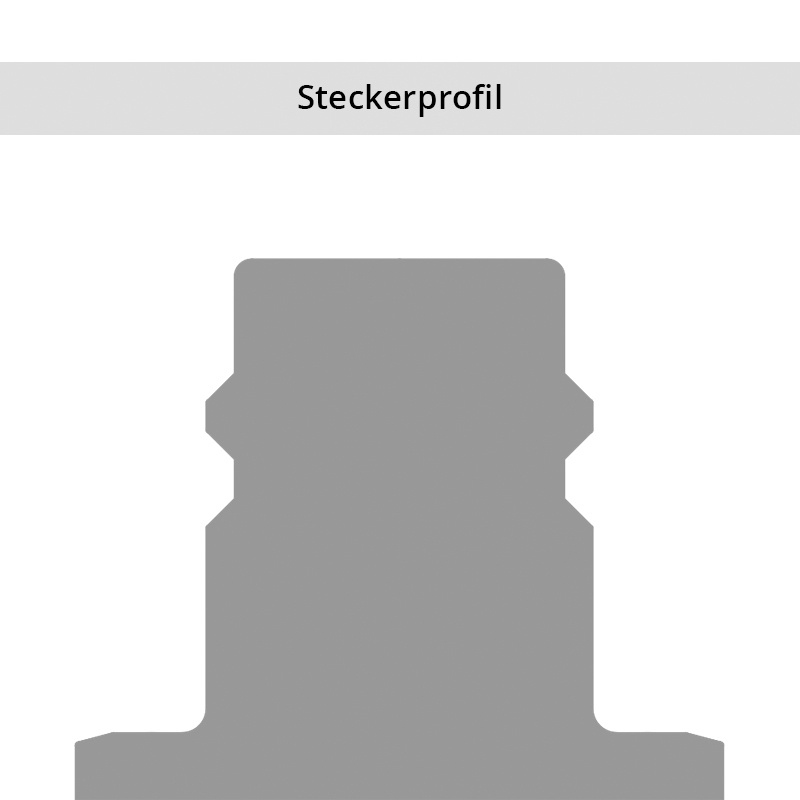

Series: | 39 |
Seal: | NBR |
Series long: | 39KL |
Bore in mm: | 19 |
Bore area in mm²: | 300 |
Advantages: | Minimal, almost imperceptible leakage when uncoupling. No air locked into the system during the coupling process. |
Working pressure: | PB = 8 bar maximum static working pressure with safety factor 4 to 1. |
Working temperature: | -20°C up to +100°C (NBR) -40°C up to +120/150°C (EPDM) -15°C up to +200°C (FKM) 0°C up to +316°C (FFKM) depending on the medium. |
Shut-Off: | Quick coupling Dry-Break (double shut-off) |

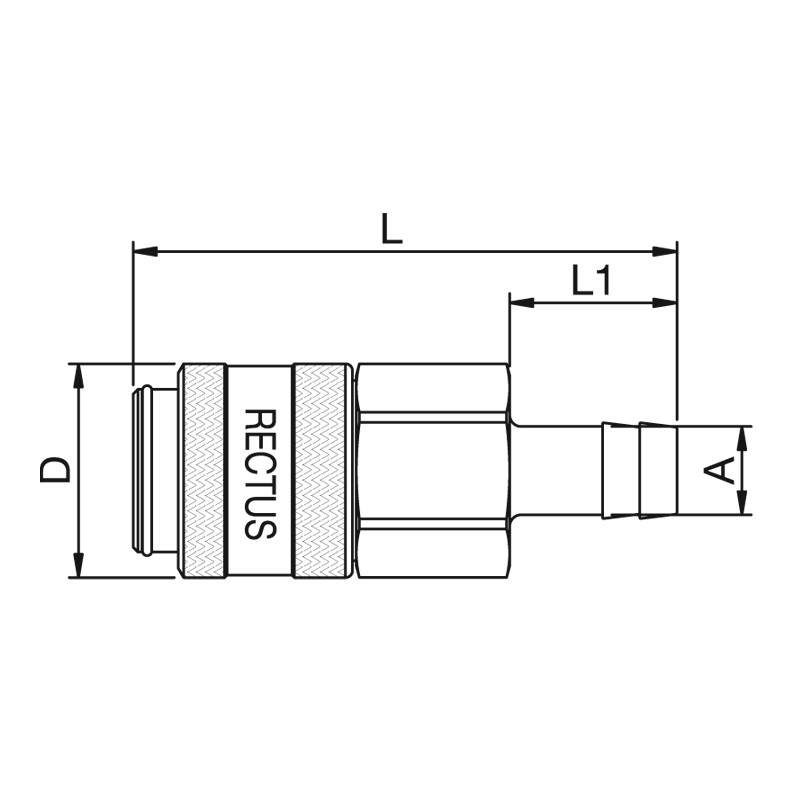

Connection: | Hose barb 19mm LW(3/4") |
Connection description: | Hose barb 19mm LW(3/4") |
Connection type: | Hose barb |
Material: | Brass |
Material description: | Brass CuZn39Pb3 2.0401 (except sleeve) |
Seal description: | Nitrite-butadiene rubber |
Surface: | blank finish |
Material connection: | Brass |
Material valve body: | Brass |
Material sleeve: | Brass |
Material valve: | Brass |
Material spring snap ring: | stainless steel AISI 301 |
Material balls/pins: | Stainless steel AISI 420 |
Material seal: | Perbunan® |
Weight in kg: | 0,6167 |
Self-venting coupling: | No |
Safety locking system: | No |
Single-hand operation: | Yes |
Two-hand operation: | No |
Ball locking: | Yes |
Pin lock: | No |
Ultra-FLO-valve: | No |
Vacuum suitable: | Yes |

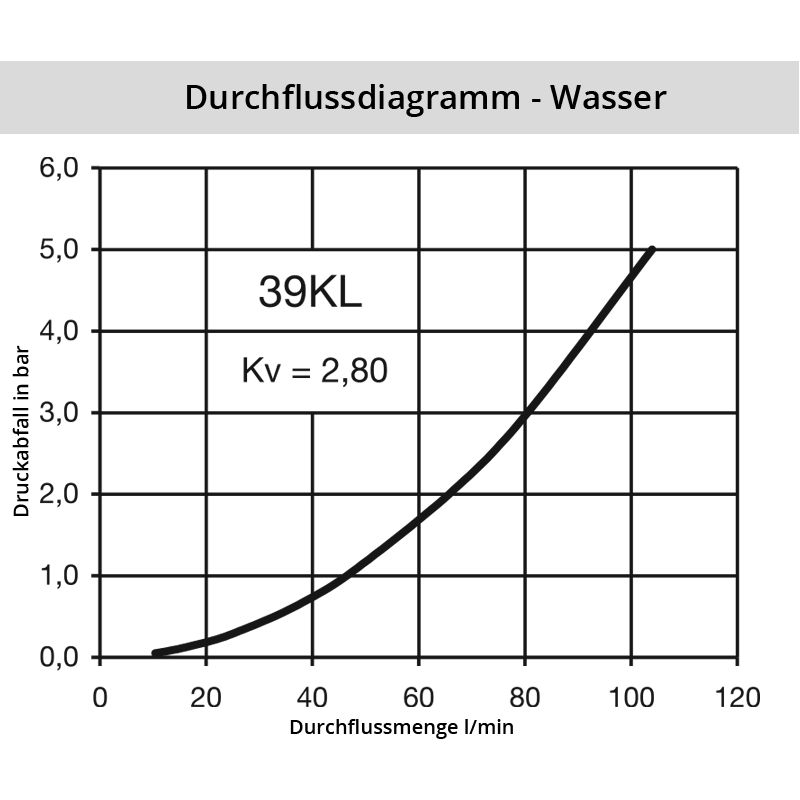

Water-resistant: | Yes |
Flat-sealing: | Yes |
Suitable breath / respiratory protection: | No |
Pressure eliminator: | No |
Hydraulics: | No |

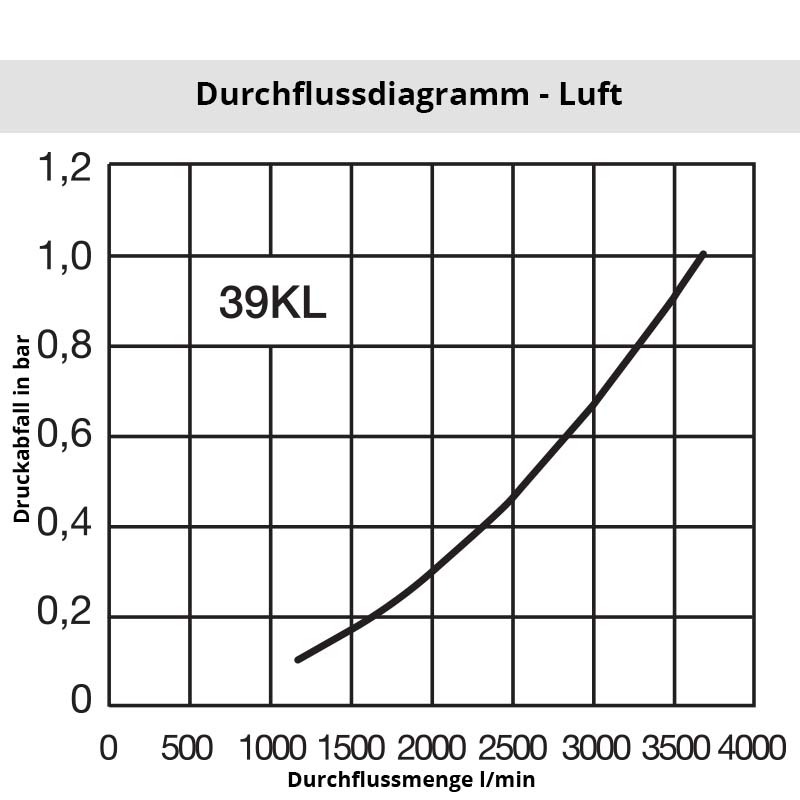

Pneumatics: | Yes |
Standard product: | No |
Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
