3889 - Compact Male stud elbows

LF 3800 / LF 3900 - Stainless steel, Compact Male stud elbows, Stainless steel 316l

From €39.16 *

Available, delivery time:

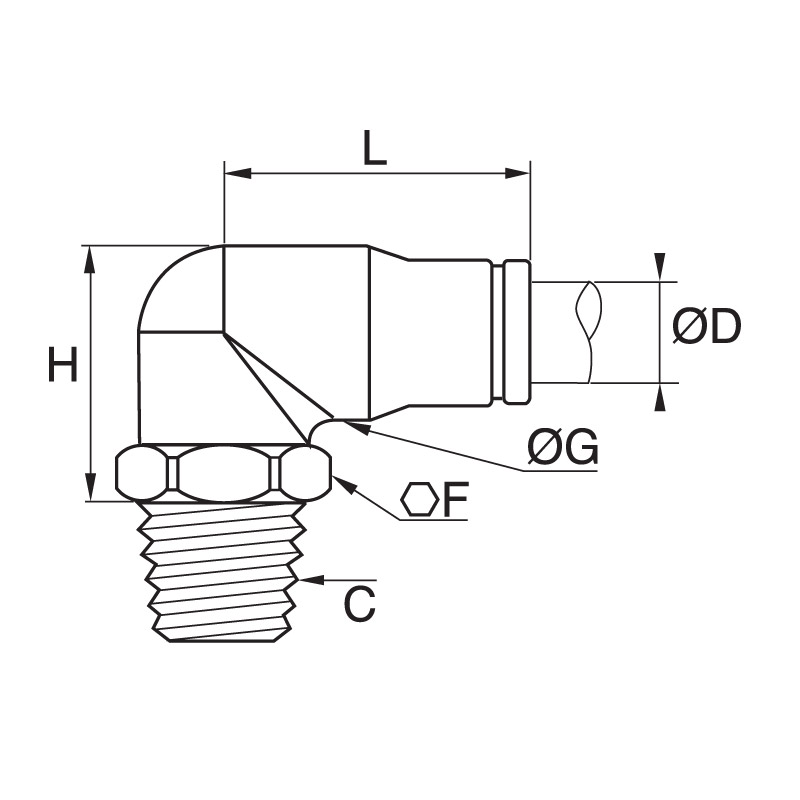

Product name	C	ØD	F	G	H	L	Price		Quantity
3889 04 10 Compact stud elbow	R1/8"	4 mm	13	10	18	17	€48.71	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 04 11 Compact stud elbow	NPT1/8"	4 mm	13	10	17,5	19	€39.16	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 04 13 Compact stud elbow	R1/4"	4 mm	17	10	19,5	16,5	€55.79	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 06 10 Compact stud elbow	R1/8"	6 mm	13	12	21,5	20,5	€48.87	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 06 11 Compact stud elbow	NPT1/8"	6 mm	13	12,5	20	22,5	€54.29	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 06 13 Compact stud elbow	R1/4"	6 mm	14	12	21,5	20,5	€58.83	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 06 14 Compact stud elbow	NPT1/4"	6 mm	14	12,5	20	22,5	€41.33	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 08 10 Compact stud elbow	R1/8"	8 mm	14	15	24	22	€59.15	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 08 11 Compact stud elbow	NPT1/8"	8 mm	13	15	25	24	€55.89	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 08 13 Compact stud elbow	R1/4"	8 mm	14	15	24	22	€60.31	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 08 14 Compact stud elbow	NPT1/4"	8 mm	14	15	24	24	€54.89	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 10 13 Compact stud elbow	R1/4"	10 mm	17	17,5	28,5	27,5	€83.95	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 10 14 Compact stud elbow	NPT1/4"	10 mm	17	17,5	27,5	27,5	€93.26	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 10 17 Compact stud elbow	R3/8"	10 mm	19	17,5	28,5	27,5	€89.57	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 10 18 Compact stud elbow	NPT3/8"	10 mm	19	17,5	28,5	26,5	€113.97	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 12 13 Compact stud elbow	R1/4"	12 mm	22	20	33,5	30	€110.53	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 12 14 Compact stud elbow	NPT1/4"	12 mm	22	20	31,5	32,5	€114.59	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 12 17 Compact stud elbow	R3/8"	12 mm	22	20	33,5	30	€118.17	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 12 18 Compact stud elbow	NPT3/8"	12 mm	22	20	32,5	32,5	€125.03	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 12 21 Compact stud elbow	R1/2"	12 mm	22	20	33,5	33	€115.51	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 12 22 Compact stud elbow	NPT1/2"	12 mm	22	20	27,5	32,5	€123.34	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 55 11 Compact stud elbow	NPT1/8"	3/16"	10	9,906	20,574	19,558	Price on request	This article is currently not available!
3889 55 14 Compact stud elbow	NPT1/4"	3/16"	14	9,906	20,574	19,558	Price on request	This article is currently not available!
3889 56 11 Compact stud elbow	NPT1/8"	1/4"	13	11,938	21,590	23,114	€49.49	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 56 14 Compact stud elbow	NPT1/4"	1/4"	14	11,938	21,590	23,114	€55.62	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 60 14 Compact stud elbow	NPT1/4"	3/8"	17	17,526	28,448	30,480	€108.21	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 60 18 Compact stud elbow	NPT3/8"	3/8"	19	17,526	28,448	30,480	€89.26	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 62 14 Compact stud elbow	NPT1/4"	1/2"	22	20,066	34,036	33,020	€113.30	This article is currently not available!
3889 62 18 Compact stud elbow	NPT3/8"	1/2"	22	20,066	34,036	33,020	€121.46	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3889 62 22 Compact stud elbow	NPT1/2"	1/2"	22	20,066	27,25	33,020	€116.64	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3889 - Compact Male stud elbows"

Connection of tubing at a 90° angle to a threaded port with reduced height dimensions.
- materials: Stainless steel, sealings: FKM.
- stainless steel components and FKM seals for use in aggressive environments
- strong construction and compact
- hygienic design aimed at reducing retention zones for safe and easy cleaning (Ra < 0,8 surface)
- permitting permanent contact with foodstuffs
- individual unit quality control and dating in order to guarantee quality and traceability
- materials conforming to FDA and 1934/2004 CE standards

Special feature:	schwenkbar
Material:	Stainless steel 316l
max. temperature in °C:	120
min. temperature in °C:	-20
RoHS compliant:	Yes
Material seal ring:	Stainless steel 316l
Material seal:	FKM
Material body:	Stainless steel 316l
Material threaded fitting:	Stainless steel 316l
Material release button:	Stainless steel 303

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
