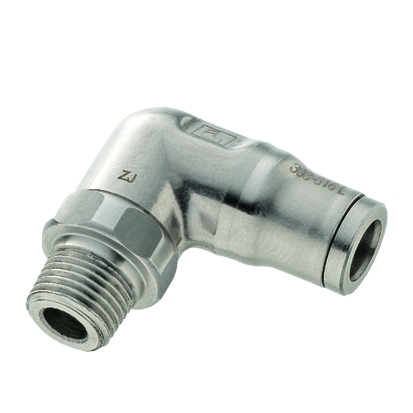

Product information "3889 62 14 Compact stud elbow"
Connection of tubing at a 90° angle to a threaded port with reduced height dimensions. - materials: Stainless steel, sealings: FKM. - stainless steel components and FKM seals for use in aggressive environments - strong construction and compact - hygienic design aimed at reducing retention zones for safe and easy cleaning (Ra < 0,8 surface) - permitting permanent contact with foodstuffs - individual unit quality control and dating in order to guarantee quality and traceability - materials conforming to FDA and 1934/2004 CE standards
Special feature:
schwenkbar
Weight in kg:
0,09
Maximum working pressure in bar:
20
max. temperature in °C:
120
min. temperature in °C:
-20
RoHS compliant:
Yes
Material seal ring:
Stainless steel 316l
Material seal:
FKM
Material body:
Stainless steel 316l
Material threaded fitting:
Stainless steel 316l
Material release button:
Stainless steel 303
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
