3809 - Male stud elbows

LF 3800 / LF 3900 - Stainless steel, Male stud elbows, Stainless steel 316l

From €26.89 *

Available, delivery time:

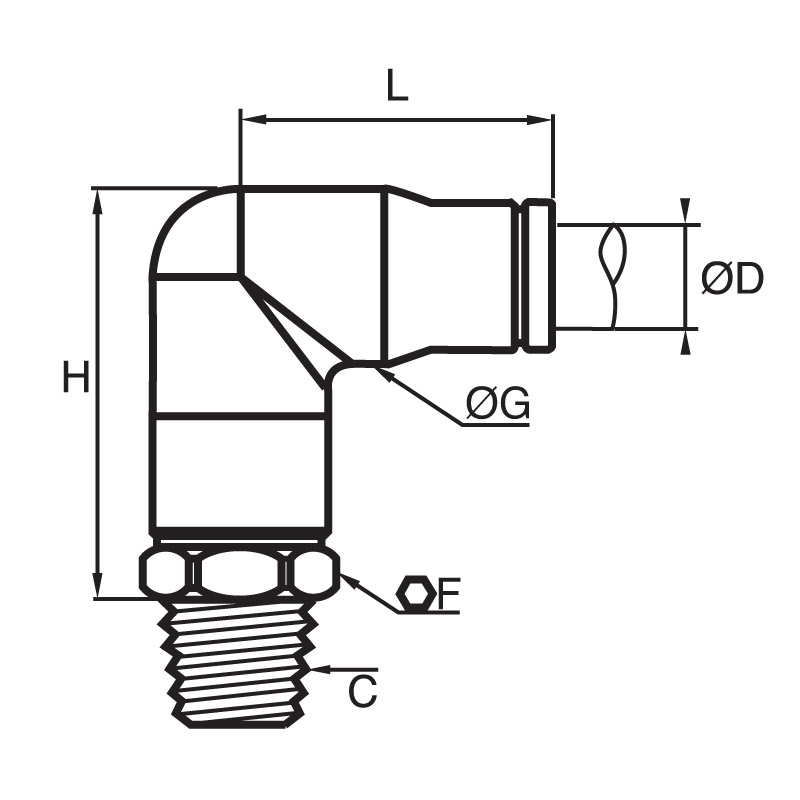

Product name	C	ØD	F	G	H	L	Price		Quantity
3809 04 10 Stud elbow	R1/8"	4 mm	10	10	23,5	16,5	€48.84	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3809 04 11 Stud elbow	NPT1/8"	4 mm	11	10	25,5	18,5	€26.89	This article is currently not available!
3809 06 10 Stud elbow	R1/8"	6 mm	13	12	27,5	20	€50.43	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3809 06 11 Stud elbow	NPT1/8"	6 mm	13	12,5	29	22,5	€48.97	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3809 06 13 Stud elbow	R1/4"	6 mm	14	12	27,5	25	€51.36	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3809 06 14 Stud elbow	NPT1/4"	6 mm	14	12,5	29	22,5	€54.56	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3809 08 10 Stud elbow	R1/8"	8 mm	14	15	32	25	€51.55	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3809 08 11 Stud elbow	NPT1/8"	8 mm	14	15	34	24	€55.79	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3809 08 13 Stud elbow	R1/4"	8 mm	14	14,5	34	25	€54.91	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3809 08 14 Stud elbow	NPT1/4"	8 mm	14	15	34	24	€60.19	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3809 10 13 Stud elbow	R1/4"	10 mm	19	17,5	37,5	27,5	€84.00	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3809 10 14 Stud elbow	NPT1/4"	10 mm	19	17,5	39,5	30	€88.41	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3809 10 17 Stud elbow	R3/8"	10 mm	19	17,5	37,5	27,5	€88.16	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3809 10 18 Stud elbow	NPT3/8"	10 mm	19	17,5	39,5	30	€89.39	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3809 - Male stud elbows"

Connection of tubing at a 90° angle to a threaded port. External tightening with a flat spanner or socket wrench, internal adjustment with an Allen key.
- stainless steel components and FKM seals for use in aggressive environments
- strong construction and compact
- hygienic design aimed at reducing retention zones for safe and easy cleaning (Ra < 0,8 surface)
- permitting permanent contact with foodstuffs
- individual unit quality control and dating in order to guarantee quality and traceability
- materials conforming to FDA and 1934/2004 CE standards

Special feature:	schwenkbar
Material:	Stainless steel 316l
max. temperature in °C:	120
min. temperature in °C:	-20
RoHS compliant:	Yes
Material seal ring:	Stainless steel 316l
Material seal:	FKM
Material body:	Stainless steel 316l
Material threaded fitting:	Stainless steel 316l
Material release button:	Stainless steel 303

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
