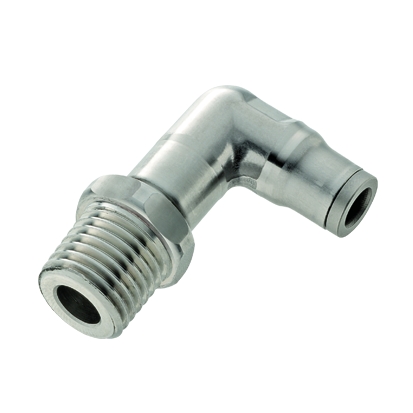

Connection of tubing at a 90° angle to a threaded port. External tightening with a flat spanner or socket wrench, internal adjustment with an Allen key.
stainless steel components and FKM seals for use in aggressive environments,
strong construction and compact,
hygienic design aimed at reducing retention zones for safe and easy cleaning (Ra < 0,8 surface),
permitting permanent contact with foodstuffs,
individual unit quality control and dating in order to guarantee quality and traceability,
materials conforming to FDA and 1934/2004 CE standards.
stainless steel components and FKM seals for use in aggressive environments,
strong construction and compact,
hygienic design aimed at reducing retention zones for safe and easy cleaning (Ra < 0,8 surface),
permitting permanent contact with foodstuffs,
individual unit quality control and dating in order to guarantee quality and traceability,
materials conforming to FDA and 1934/2004 CE standards.
| Maximum working pressure in bar: | 30 |
| Material seal ring: | Stainless steel 316l |
| Material seal: | FKM |
| Material body: | Stainless steel 316l |
| Material release button: | Stainless steel 303 |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 120 |
| Special feature: | schwenkbar |
| RoHS compliant: | Yes |
| Weight in kg: | 0,045 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
