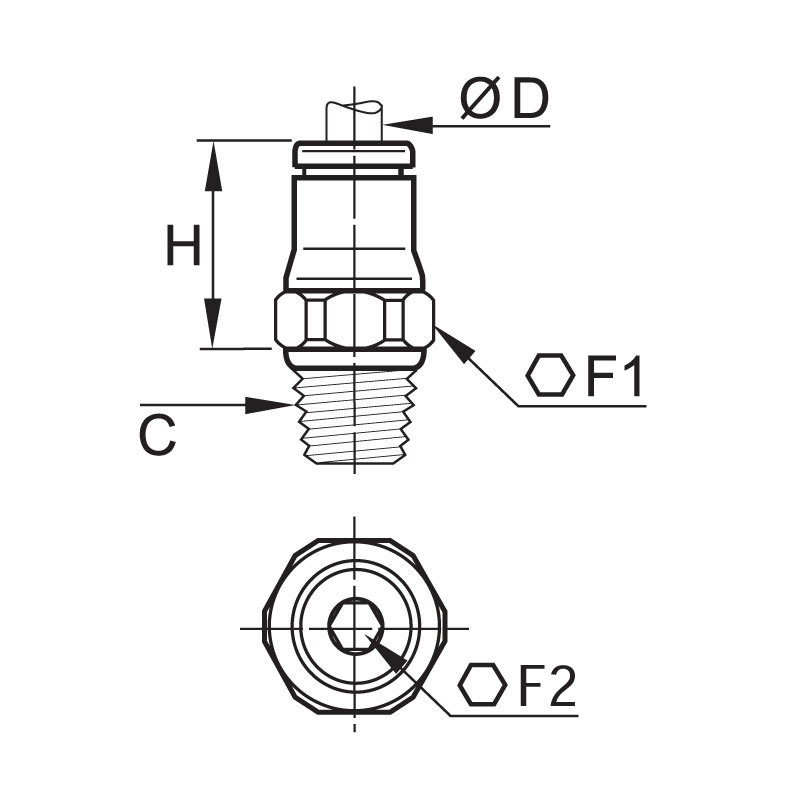

In-line connection of tubing to a threaded port. External tightening with a flat spanner or a socket wrench, internal adjustment with an Allen key. Solid construction and compact design. Excellent resistance to corrosion. Individual unit quality control and dating in order to guarantee quality and traceability. Components meet FDA standard and 1935/2004/EC regulation and comply RoHS.
| Material seal ring: | Brass nickel plated chemical fda brass |
| Material seal: | FKM |
| Material body: | Brass nickel plated chemical fda brass |
| Material release button: | Brass nickel plated chemical fda brass |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 150 |
| Vacuum resistance in mm Hg: | 755 |
| Material: | Brass nickel plated chemical fda brass |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
