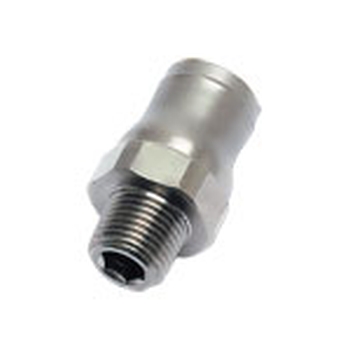

3675 60 18 Male stud coupling

LF 3600 - Brass special - Industrie and food, male stud coupling, Brass nickel plated chemical fda brass, 3/8 - NPT3/8

€11.58

Available in 20 days, transport time 1-2 working days

Sold only in units of 10 pieces.

Product information "3675 60 18 Male stud coupling"

In-line connection of tubing to a threaded port. External tightening with a flat spanner or a socket wrench, internal adjustment with an Allen key. Solid construction and compact design. Excellent resistance to corrosion. Individual unit quality control and dating in order to guarantee quality and traceability. Components meet FDA standard and 1935/2004/EC regulation and comply RoHS.

Weight in kg:	0,032
Maximum working pressure in bar:	30
max. temperature in °C:	150
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal ring:	Brass nickel plated chemical fda brass
Material seal:	FKM
Material body:	Brass nickel plated chemical fda brass
Material release button:	Brass nickel plated chemical fda brass

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

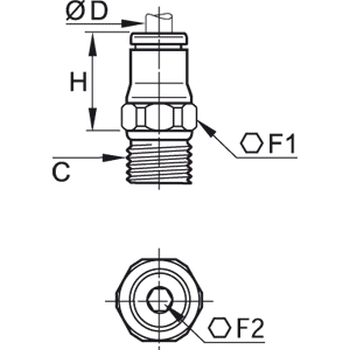

C:	NPT3/8"
F1:	18
F2:	8
H:	23
K:	19,5
ØD:	3/8"
