Product information "35PHHA653 impulse nutrunner"

non-shut-off impulse nutrunner. Low air consuption due to integrated centrifugal regulator. Long operating times per service interval. Low vibration and noise. quick-action chuck 7/16" available separately as an accessory.
Output: 3/8" Square Drive
Torque in Nm: 35
Weight in kg: 1,07
Idling speed rpm: 6.500
Air connection: female thread 1/4" NPT
Luftverbrauch Leerlauf / Pulsen in m³/min: 0,55
Air supply: above
Idle sound dB(A): < 79
Hose size: Innen-Ø 3/8" (Ø 9,5 mm), max. 5 m lang
Screw size: M8
Vibrationen (m/s²): < 1,8
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

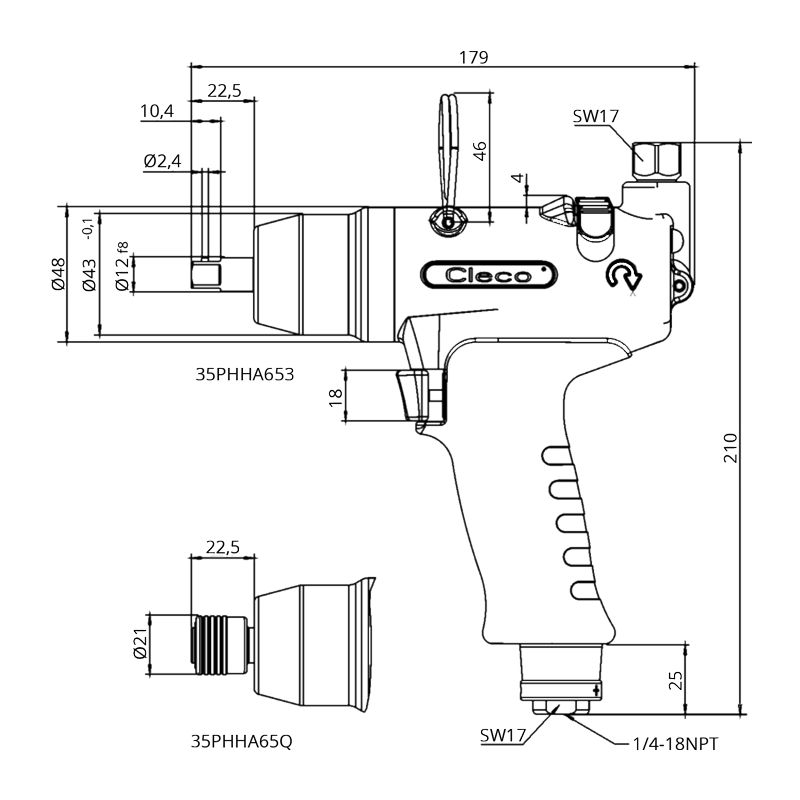

35PHHA Technische Zeichnung
Length in mm: 179
Side to center in mm: 24
