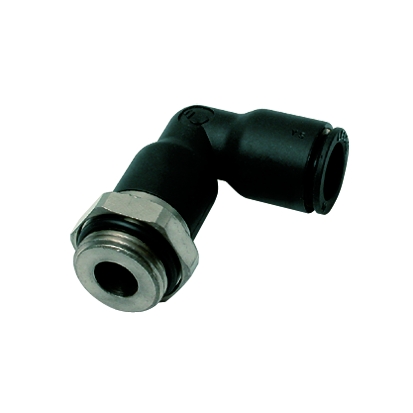

3169 - Extended Male stud elbows

LF 3000 standard pneumatic, Extended Male stud elbows, Engineered polymer

From €6.71 *

Available, delivery time:

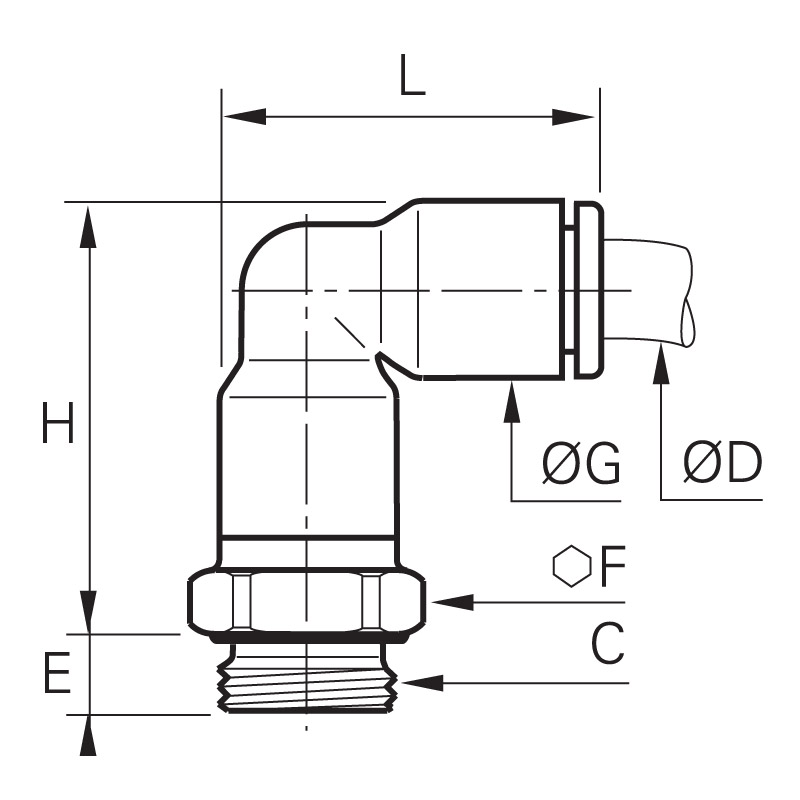

Product name	C	E	ØD	F	G	H	L	Price		Quantity
3169 04 10 Extended stud elbow	G1/8"	5	4 mm	13	8,5	22,5	19	€6.71	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 04 13 Extended stud elbow	G1/4"	5,5	4 mm	16	8,5	22,5	19	€8.04	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 04 19 Extended stud elbow	M5x0,8	3,5	4 mm	8	8,5	23	19	€6.75	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 04 20 Extended stud elbow	10-32	5	5/32"	8	8,5	23	19	€19.90	This article is currently not available!
3169 04 55 Extended stud elbow	M7x1	4,5	4 mm	10	8,5	22,5	19	Price on request	This article is currently not available!
3169 06 10 Extended stud elbow	G1/8"	5	6 mm	13	10,5	27	23	€7.04	Available in 1 days, transport time 3-4 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 06 13 Extended stud elbow	G1/4"	5,5	6 mm	16	10,5	27	23	€8.07	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 06 19 Extended stud elbow	M5x0,8	3,5	6 mm	10	10,5	27,5	23	€8.04	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 06 55 Extended stud elbow	M7x1	4,5	6 mm	10	10,5	26	23	€7.62	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 08 10 Extended stud elbow	G1/8"	5	8 mm	13	13,5	36	29,5	€8.83	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 08 13 Extended stud elbow	G1/4"	5,5	8 mm	16	13,5	33	29,5	€9.41	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 08 17 Extended stud elbow	G3/8"	5,5	8 mm	20	13,5	33	29,5	€10.36	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 10 13 Extended stud elbow	G1/4"	5,5	10 mm	16	16	40,5	34,5	€12.47	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 10 17 Extended stud elbow	G3/8"	5,5	10 mm	20	16	40,5	34,5	€12.69	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 10 21 Extended stud elbow	G1/2"	7,5	10 mm	24	16	40,5	34,5	€13.21	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 12 13 Extended stud elbow	G1/4"	5,5	12 mm	19	19	44,5	40,5	€13.32	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 12 17 Extended stud elbow	G3/8"	5,5	12 mm	20	19	42	40,5	€13.54	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 12 21 Extended stud elbow	G1/2"	7,5	12 mm	24	19	42	40,5	€14.61	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 14 17 Extended stud elbow	G3/8"	5,5	14 mm	22	22	51	46,5	€13.49	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 14 21 Extended stud elbow	G1/2"	7,5	14 mm	24	22	48,5	46,5	€14.08	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 16 17 Extended stud elbow	G3/8"	7,5	16 mm	27	27	82,5	52	€24.50	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3169 16 21 Extended stud elbow	G1/2"	9	16 mm	27	27	82,5	52	€24.93	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3169 - Extended Male stud elbows"

Connection of tubing at a 90° angle. Dimensions are designed to pass over a 3199 elbow. solid construction, aesthetic and unobtrusive for a better connection. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS.

Special feature:	schwenkbar
Material:	Engineered polymer
max. temperature in °C:	80
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal:	NBR
Material body:	Engineered polymer
Material threaded fitting:	Brass nickel plated
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
