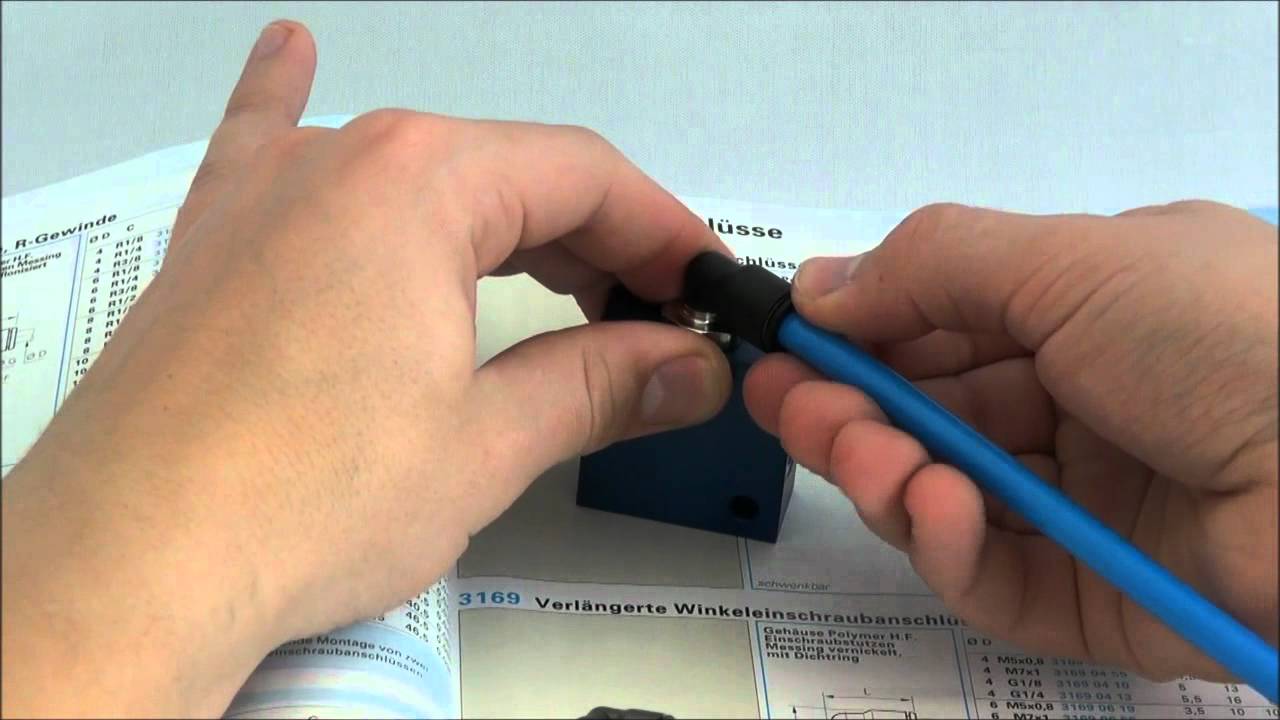

Connection of tubing at a 90° angle. Dimensions are designed to pass over a 3199 elbow. solid construction, aesthetic and unobtrusive for a better connection. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS.
| Maximum working pressure in bar: | 20 |
| Material seal: | NBR |
| Material body: | Engineered polymer |
| Material threaded fitting: | Brass nickel plated |
| Material toothed washer: | Stainless steel |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 80 |
| Vacuum resistance in mm Hg: | 755 |
| Special feature: | schwenkbar |
| RoHS compliant: | Yes |
| Weight in kg: | 0,006 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
Available downloads:
3D Modell
