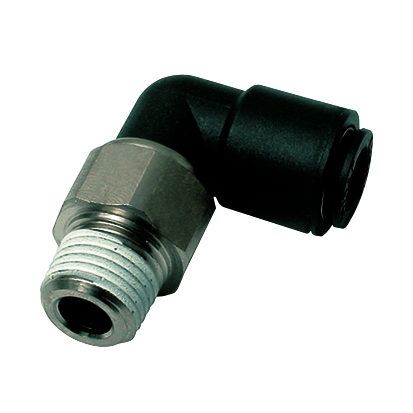

Connection of tubing at a 90° angle. Designed to limit constrictions in the tubing diameter when the cylinder is operating. Precoated thread ensuring direct sealing and full air flow. Complies RoHS and ISO 14743.
| Seal coating: | PTFE |
| Material seal: | NBR |
| Material body: | Engineered polymer |
| Material threaded fitting: | Brass nickel plated |
| Material gripping ring: | PTFE |
| Material toothed washer: | Stainless steel |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 80 |
| Vacuum resistance in mm Hg: | 755 |
| Material: | Engineered polymer |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
