3109 - Male stud elbows

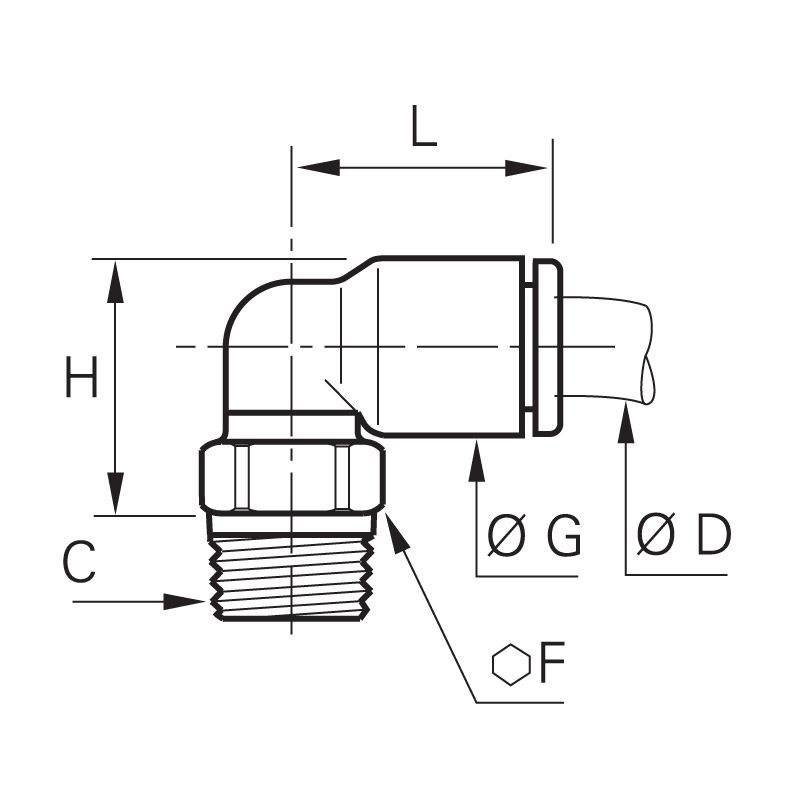

LF 3000 standard pneumatic, Male stud elbows, Engineered polymer

From €3.71 *

Available, delivery time:

Product name	C	ØD	F	G	H	L	Price		Quantity
3109 04 10 Stud elbow	R1/8"	4 mm	10	8,5	13,5	14	€3.71	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 04 11 Stud elbow	NPT1/8"	4 mm	11	8,382	13,462	13,970	€4.32	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 04 13 Stud elbow	R1/4"	4 mm	14	8,5	14	14	€4.32	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 04 14 Stud elbow	NPT1/4"	4 mm	14	8,382	13,970	13,970	€4.80	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 04 17 Stud elbow	R3/8"	4 mm	17	8,5	13,5	14	€6.89	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 04 20 Stud elbow	10-32	5/32"	8	8,382	13,462	13,970	€8.03	Available in 35 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 06 10 Stud elbow	R1/8"	6 mm	10	10,5	15,5	16	€4.01	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 06 11 Stud elbow	NPT1/8"	6 mm	11	10,5	15,5	16	€5.47	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 06 13 Stud elbow	R1/4"	6 mm	14	10,5	16	16	€4.72	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 06 14 Stud elbow	NPT1/4"	6 mm	14	10,5	16	16	€5.38	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 06 17 Stud elbow	R3/8"	6 mm	17	10,5	16	16	€5.81	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 06 21 Stud elbow	R1/2"	6 mm	21	10,5	16,5	16	€7.97	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 08 10 Stud elbow	R1/8"	8 mm	10	13,5	19	23	€4.72	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 08 13 Stud elbow	R1/4"	8 mm	14	13,5	18	23	€4.80	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 08 14 Stud elbow	NPT1/4"	8 mm	14	13,462	18,034	23,114	€5.80	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 08 17 Stud elbow	R3/8"	8 mm	17	13,5	18	23	€6.25	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 08 21 Stud elbow	R1/2"	8 mm	21	13,5	19,5	23	€7.50	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 10 10 Stud elbow	R1/8"	10 mm	15	16	23	26,5	€8.00	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 10 13 Stud elbow	R1/4"	10 mm	15	16	22	26,5	€6.25	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 10 14 Stud elbow	NPT1/4"	10 mm	15	16	23	26,5	€14.23	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 10 17 Stud elbow	R3/8"	10 mm	17	16	22	26,5	€7.06	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 10 18 Stud elbow	NPT3/8"	10 mm	18	16	22	26,5	€11.80	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 10 21 Stud elbow	R1/2"	10 mm	21	16	22	26,5	€8.84	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 10 22 Stud elbow	NPT1/2"	10 mm	22	16	23	26,5	€13.67	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 12 13 Stud elbow	R1/4"	12 mm	15	19	25	31	€9.12	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 12 17 Stud elbow	R3/8"	12 mm	17	19	25	31	€9.12	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 12 18 Stud elbow	NPT3/8"	12 mm	18	19	25	31	€12.16	This article is currently not available!
3109 12 21 Stud elbow	R1/2"	12 mm	21	19	25	31	€11.46	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 12 22 Stud elbow	NPT1/2"	12 mm	22	19	26	31	€16.95	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 14 17 Stud elbow	R3/8"	14 mm	20	22	30,5	35,5	€11.52	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 14 21 Stud elbow	R1/2"	14 mm	24	22	28,5	35,5	€12.08	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 16 17 Stud elbow	R3/8"	16 mm	27	27	53	39	€21.25	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 16 21 Stud elbow	R1/2"	16 mm	27	27	53	39	€17.11	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 53 11 Stud elbow	NPT1/8"	1/8"	11	8,509	13,462	14,503	€4.43	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 53 20 Stud elbow	10-32	1/8"	8	8,509	13,208	14,503	€5.68	Available in 45 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 56 10 Stud elbow	R1/8"	1/4"	10	10,922	17,018	18,034	€6.19	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 56 11 Stud elbow	NPT1/8"	1/4"	11	10,922	17,018	18,034	€4.76	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 56 14 Stud elbow	NPT1/4"	1/4"	14	10,922	16,002	18,034	€5.70	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 56 18 Stud elbow	NPT3/8"	1/4"	18	10,922	16,510	18,034	€6.45	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 60 11 Stud elbow	NPT1/8"	3/8"	15	16,002	23,114	27,432	€7.62	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 60 13 Stud elbow	R1/4"	3/8"	15	16,002	22,098	26,416	€6.53	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 60 14 Stud elbow	NPT1/4"	3/8"	15	16,002	23,114	27,432	€7.47	Available in 35 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 60 17 Stud elbow	R3/8"	3/8"	17	16,002	22,098	26,416	€6.96	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 60 18 Stud elbow	NPT3/8"	3/8"	18	16,002	22,098	27,432	€8.46	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 60 22 Stud elbow	NPT1/2"	3/8"	22	16,002	23,114	27,432	€11.19	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 62 13 Stud elbow	R1/4"	1/2"	20	22,098	30,988	35,052	€20.34	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 62 18 Stud elbow	NPT3/8"	1/2"	20	22,098	30,988	35,052	€12.15	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3109 62 22 Stud elbow	NPT1/2"	1/2"	24	22,098	28,448	35,052	€13.67	Available in 40 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3109 - Male stud elbows"

Connection of tubing at 90° with a male thread.Tightened on the top of the fitting with a flat spanner or Allen key to facilitate assembly in tight spaces. solid construction, aesthetic and unobtrusive for a better connection. Precoated thread ensuring direct sealing and full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.

Special feature:	schwenkbar
Seal coating:	PTFE
Material:	Engineered polymer
max. temperature in °C:	80
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal:	NBR
Material body:	Engineered polymer
Material threaded fitting:	Brass nickel plated
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
