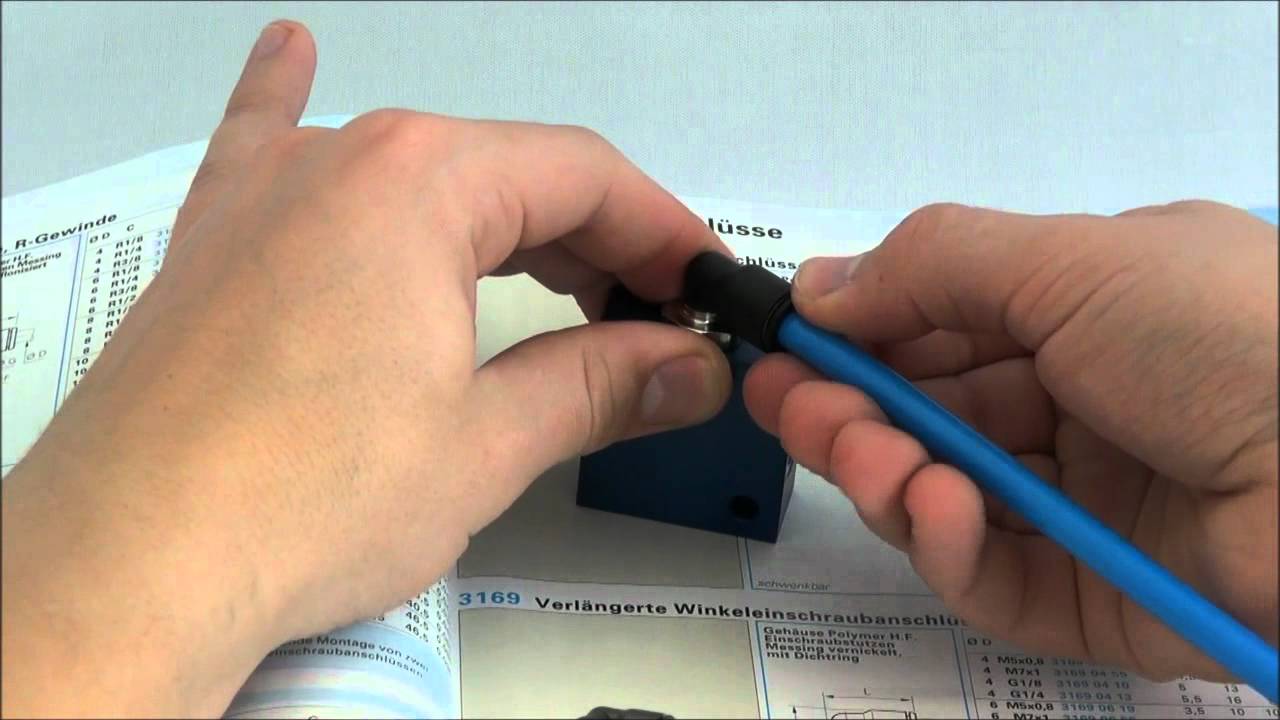

Connection of tubing at 90° with a male thread.Tightened on the top of the fitting with a flat spanner or Allen key to facilitate assembly in tight spaces. solid construction, aesthetic and unobtrusive for a better connection. Precoated thread ensuring direct sealing and full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.
Special feature:
schwenkbar
Seal coating:
PTFE
Weight in kg:
0,007
Maximum working pressure in bar:
20
max. temperature in °C:
80
min. temperature in °C:
-20
RoHS compliant:
Yes
Vacuum resistance in mm Hg:
755
Material seal:
NBR
Material body:
Engineered polymer
Material threaded fitting:
Brass nickel plated
Material toothed washer:
Stainless steel
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
