3101 - Male stud couplings

LF 3000 standard pneumatic, Male stud couplings, Brass nickel plated

Price on request

Available, delivery time:

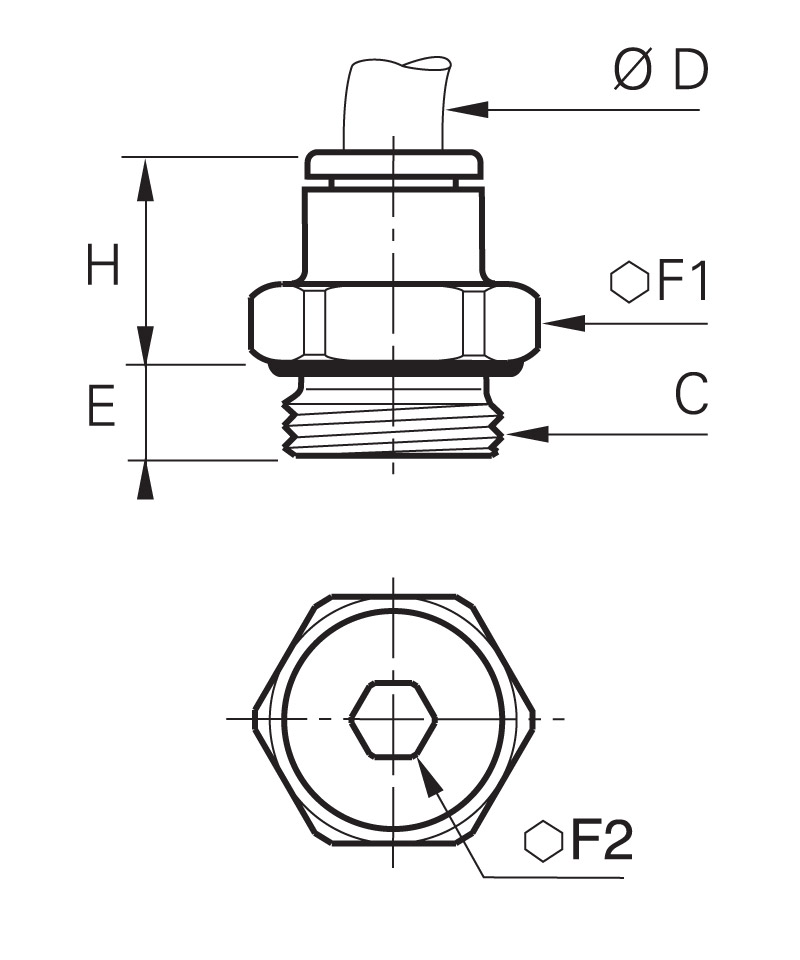

Product name	C	E	ØD	F1	F2	H	Price		Quantity
3101 03 09 Male stud coupling	M3x0,5	2,5	3 mm	8	-	12,5	€6.19	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 03 19 Male stud coupling	M5x0,8	3,5	3 mm	8	2,5	12,5	€5.88	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 04 09 Male stud coupling	M3x0,5	2,5	4 mm	8	-	14,5	€5.55	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 04 10 Male stud coupling	G1/8"	5	4 mm	13	3	11,5	€2.53	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 04 13 Male stud coupling	G1/4"	5,5	4 mm	16	3	10,5	€2.84	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 04 19 Male stud coupling	M5x0,8	3	4 mm	9	2,5	14	€3.02	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 04 55 Male stud coupling	M7x1	5	4 mm	10	2,5	14	€5.81	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 06 10 Male stud coupling	G1/8"	5	6 mm	13	4	13	€2.63	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 06 13 Male stud coupling	G1/4"	5,5	6 mm	16	4	12,5	€3.02	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 06 17 Male stud coupling	G3/8"	5,5	6 mm	20	4	13	€4.16	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 06 19 Male stud coupling	M5x0,8	3,5	6 mm	11	2,5	16	€3.21	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 06 21 Male stud coupling	G1/2"	7,5	6 mm	24	4	20	€5.14	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 06 55 Male stud coupling	M7x1	5	6 mm	10	3	16	€7.14	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 06 60 Male stud coupling	M10x1	5	6 mm	13	4	13	€3.90	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 06 67 Male stud coupling	M12x1,5	5,5	6 mm	15	4	13	€6.08	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 08 10 Male stud coupling	G1/8"	4,5	8 mm	13	5	20,5	€3.02	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 08 13 Male stud coupling	G1/4"	5,5	8 mm	16	6	19,5	€3.05	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 08 17 Male stud coupling	G3/8"	5,5	8 mm	20	6	18	€4.55	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 08 21 Male stud coupling	G1/2"	7,5	8 mm	24	6	16,5	€6.57	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 08 60 Male stud coupling	M10x1	5	8 mm	13	5	21	€8.14	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 08 67 Male stud coupling	M12x1,5	5,5	8 mm	15	5	21	€6.22	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 10 13 Male stud coupling	G1/4"	5,5	10 mm	16	7	23	€4.70	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 10 17 Male stud coupling	G3/8"	5,5	10 mm	20	8	19,5	€5.15	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 10 21 Male stud coupling	G1/2"	7,5	10 mm	24	8	18,5	€7.96	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 12 13 Male stud coupling	G1/4"	5,5	12 mm	19	7	27,5	€6.77	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 12 17 Male stud coupling	G3/8"	5,5	12 mm	20	9	27	€6.87	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 12 21 Male stud coupling	G1/2"	7	12 mm	24	11	22,5	€8.37	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 14 17 Male stud coupling	G3/8"	5,5	14 mm	22	9	29,5	€9.04	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 14 21 Male stud coupling	G1/2"	7	14 mm	24	11	28	€9.34	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 16 17 Male stud coupling	G3/8"	7,5	16 mm	27	9	32,5	€15.62	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
3101 16 21 Male stud coupling	G1/2"	9	16 mm	27	12	32,5	€12.64	Available, delivery time: 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.

Product information "3101 - Male stud couplings"

In line connection of tubing to a threaded port. External tightening with a flat spanner or Allen key, internal adjustment with an Allen key. Solid construction, compact, aesthetic and unobtrusive for better connection. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.

Maximum working pressure in bar:	20
max. temperature in °C:	80
min. temperature in °C:	-20
RoHS compliant:	Yes
Vacuum resistance in mm Hg:	755
Material seal:	NBR
Material body:	Brass nickel plated
Material toothed washer:	Stainless steel

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
