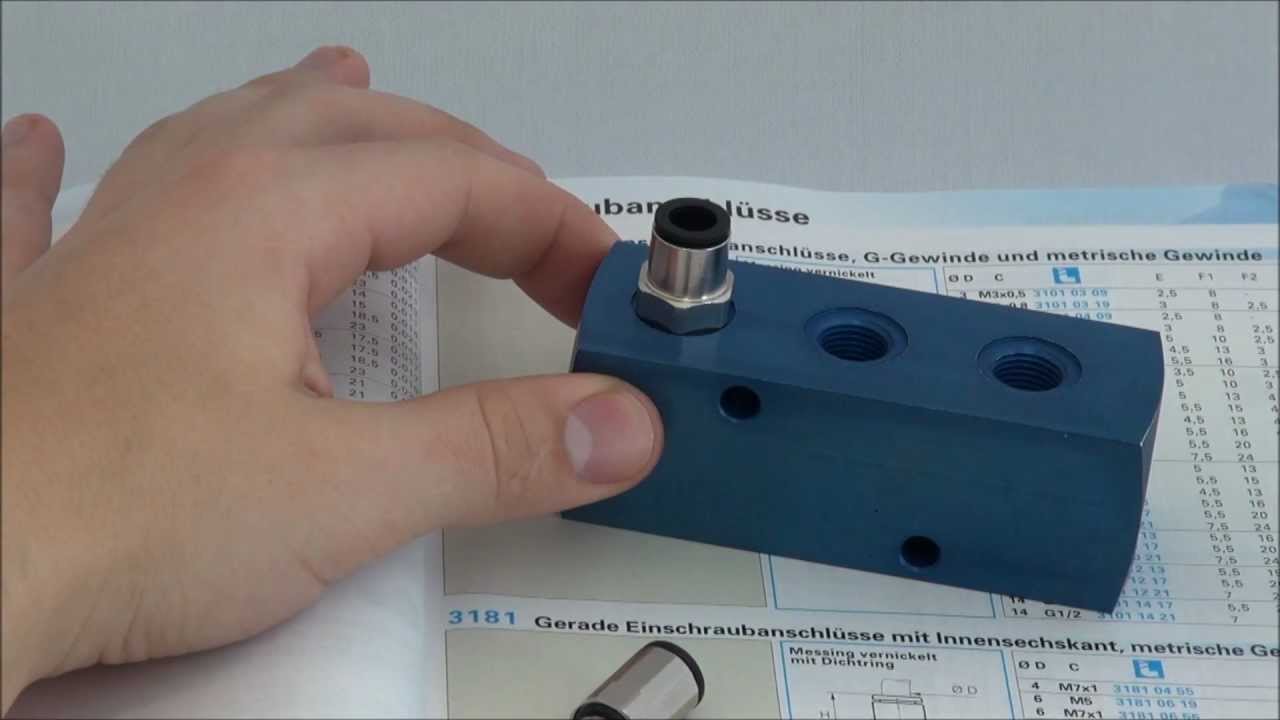

In line connection of tubing to a threaded port. External tightening with a flat spanner or Allen key, internal adjustment with an Allen key. Solid construction, compact, aesthetic and unobtrusive for better connection. Full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.
| Maximum working pressure in bar: | 20 |
| Material seal: | NBR |
| Material body: | Brass nickel plated |
| Material toothed washer: | Stainless steel |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 80 |
| Vacuum resistance in mm Hg: | 755 |
| RoHS compliant: | Yes |
| Weight in kg: | 0,016 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
Available downloads:
3D Modell
