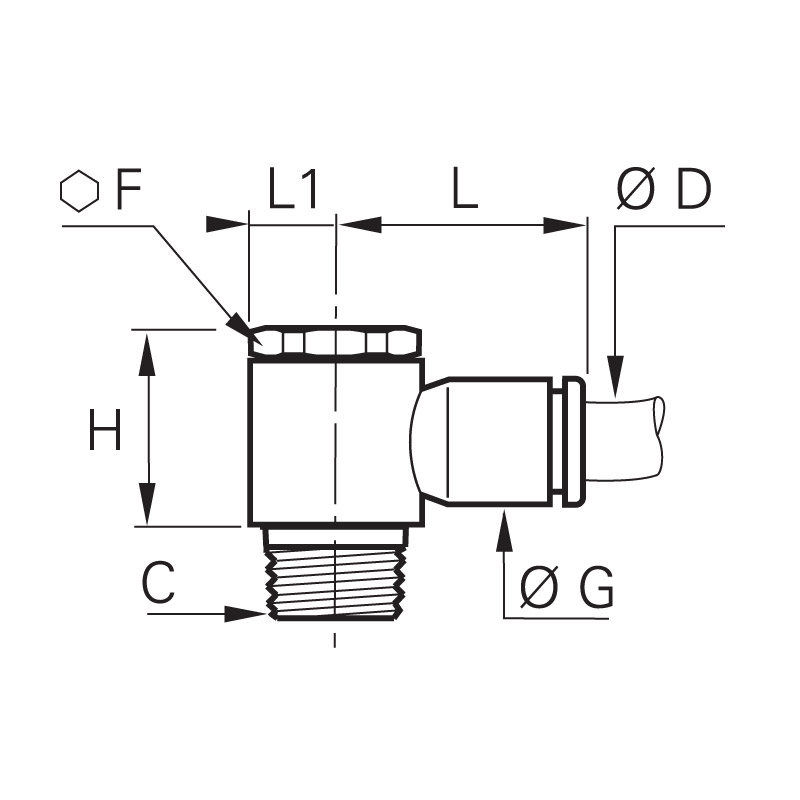

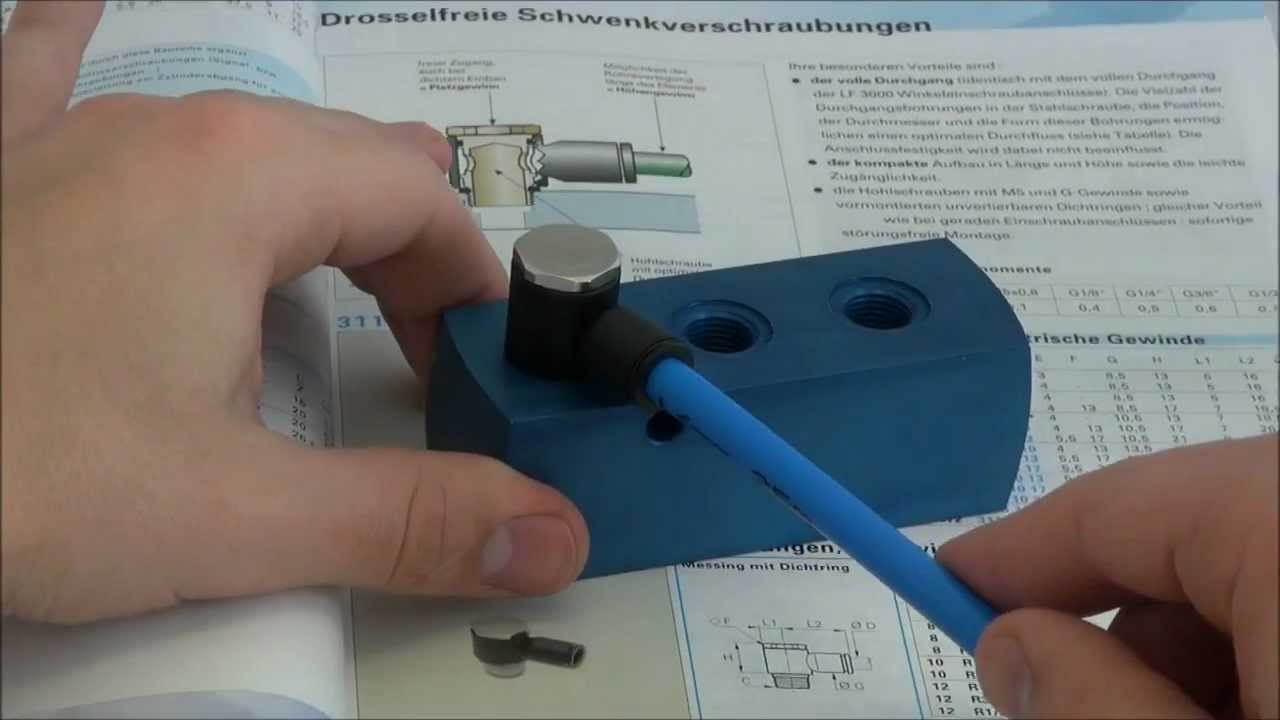

Connection of tubing at a 90° angle. Tightened on the top of the fitting by use of a flat spanner or Allen key. Assembly in tight spaces. Solid construction. Precoated thread ensuring direct sealing and full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.
| Maximum working pressure in bar: | 20 |
| Seal coating: | PTFE |
| Material seal: | NBR |
| Material adjusting spindle: | Brass nickel plated |
| Material body: | Engineered polymer |
| Material toothed washer: | Stainless steel |
| min. temperature in °C: | -20 |
| max. temperature in °C: | 80 |
| Vacuum resistance in mm Hg: | 755 |
| RoHS compliant: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
