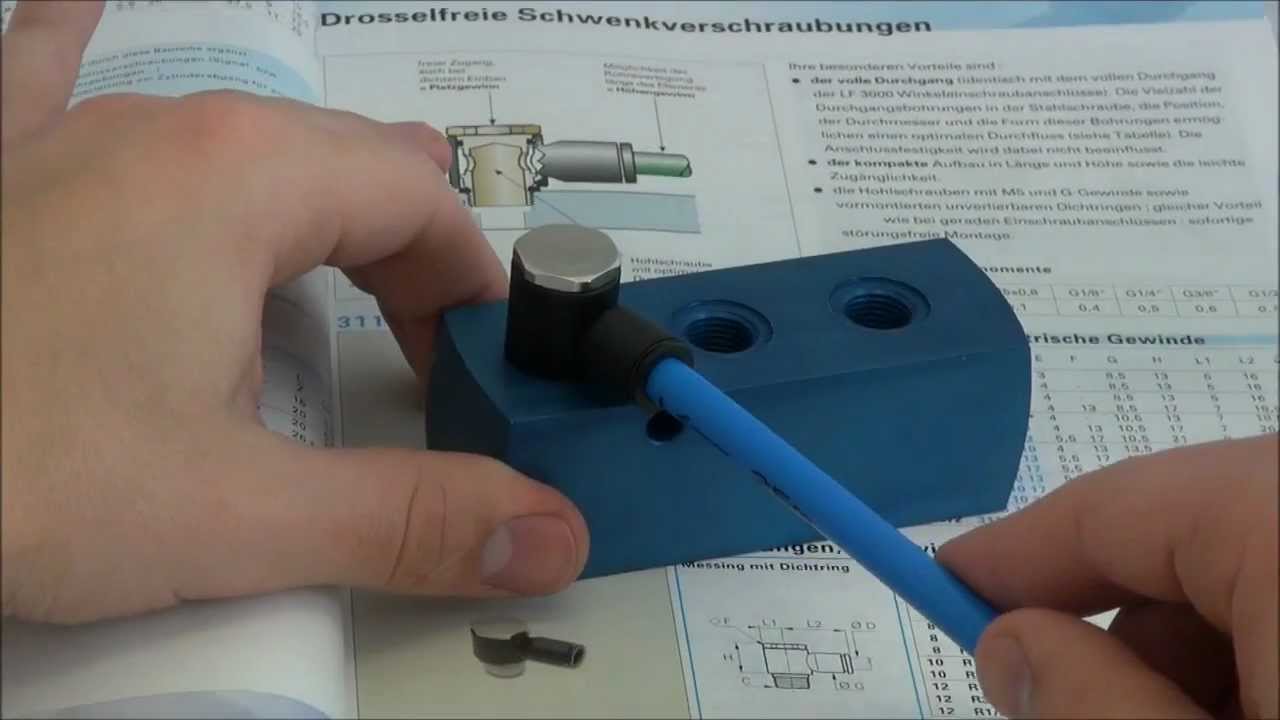

Connection of tubing at a 90° angle. Tightened on the top of the fitting by use of a flat spanner or Allen key. Assembly in tight spaces. Solid construction. Precoated thread ensuring direct sealing and full air flow. Individual unit quality control and dating in order to guarantee quality and traceability. Complies RoHS and ISO 14743.
Seal coating:
PTFE
Weight in kg:
0,014
Maximum working pressure in bar:
20
max. temperature in °C:
80
min. temperature in °C:
-20
RoHS compliant:
Yes
Vacuum resistance in mm Hg:
755
Material seal:
NBR
Material adjusting spindle:
Brass nickel plated
Material body:
Engineered polymer
Material toothed washer:
Stainless steel
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
