Series: | 26 |
Seal: | Without Seal |
Series long: | 26SS |
Bore in mm: | 7,8 |
Bore area in mm²: | 48 |

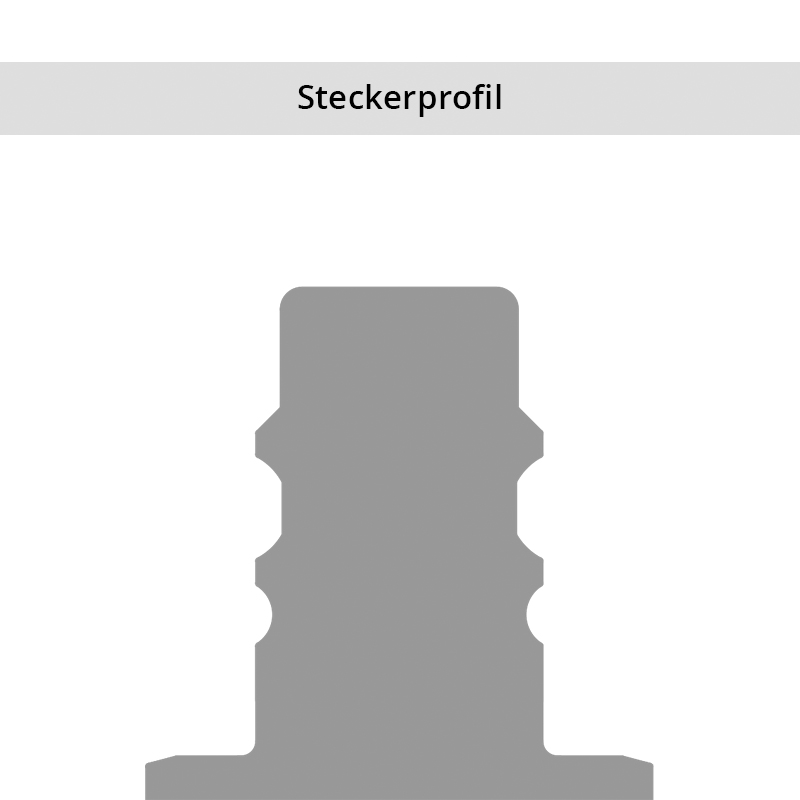

Advantages: | Double profiled plug design against wear of material during operation. |
Additional information: | FEHLT |
Compatibility: | FEHLT |
Working pressure: | 35 bar (Brass-Version) 70 bar (with steel body and steel sleeve) maximum static working pressure with safety factor 4 to 1. |
Working temperature: | -20°C up to +100°C (NBR) -40°C up to +120/150°C (EPDM) -15°C up to +200°C (FKM) 0°C up to +316°C (FFKM) depending on the medium. |
Shut-Off: | Plug Safety (straight-through) |

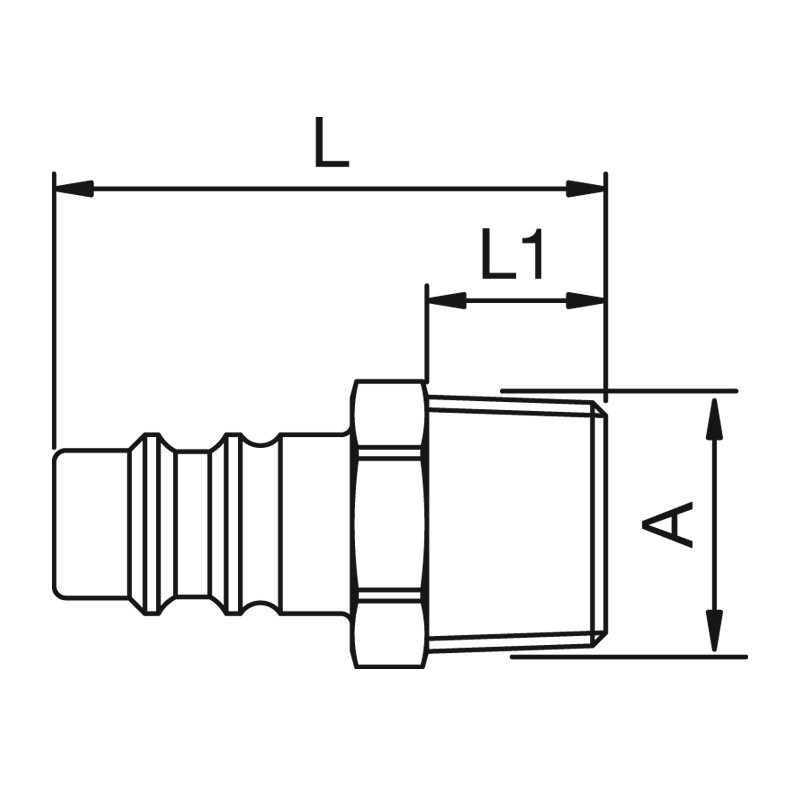

Connection: | Male thread 1/4" |
Connection description: | Male pipe thread of Whitworth form ISO 228 1/4" |
Connection type: | Male thread |
Material: | Brass nickel plated |
Material description: | Brass CuZn39Pb3 2.0401 (except sleeve) |
Surface: | nickel plated |
Material connection: | Brass nickel plated |
Material valve: | Brass |
Material spring snap ring: | stainless steel AISI 301 |
Weight in kg: | 0,019 |
Self-venting coupling: | No |
Safety locking system: | Yes |
Single-hand operation: | No |
Two-hand operation: | Yes |
Ball locking: | No |
Pin lock: | No |
Ultra-FLO-valve: | No |
Vacuum suitable: | Yes |
Water-resistant: | Yes |
Flat-sealing: | No |
Suitable breath / respiratory protection: | No |
Pressure eliminator: | No |
Hydraulics: | No |
Pneumatics: | Yes |
Standard product: | No |
Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
