Series: | 25 |
Seal: | FKM |
Series long: | 25SL |
Bore in mm: | 7,4 |
Bore area in mm²: | 42 |
Advantages: | One-hand operation. Robust structure. UltraFlo valve. The collar design minimises damage to the valve body. Minimal, almost imperceptible leakage when uncoupling. No air locked into the system during the coupling process. |
Working pressure: | PB = 8 bar maximum static working pressure with safety factor 4 to 1. |
Working temperature: | -20°C up to +100°C (NBR) -40°C up to +120/150°C (EPDM) -15°C up to +200°C (FKM) depending on the medium. |
Shut-Off: | Plug Dry-Break (double shut-off) |

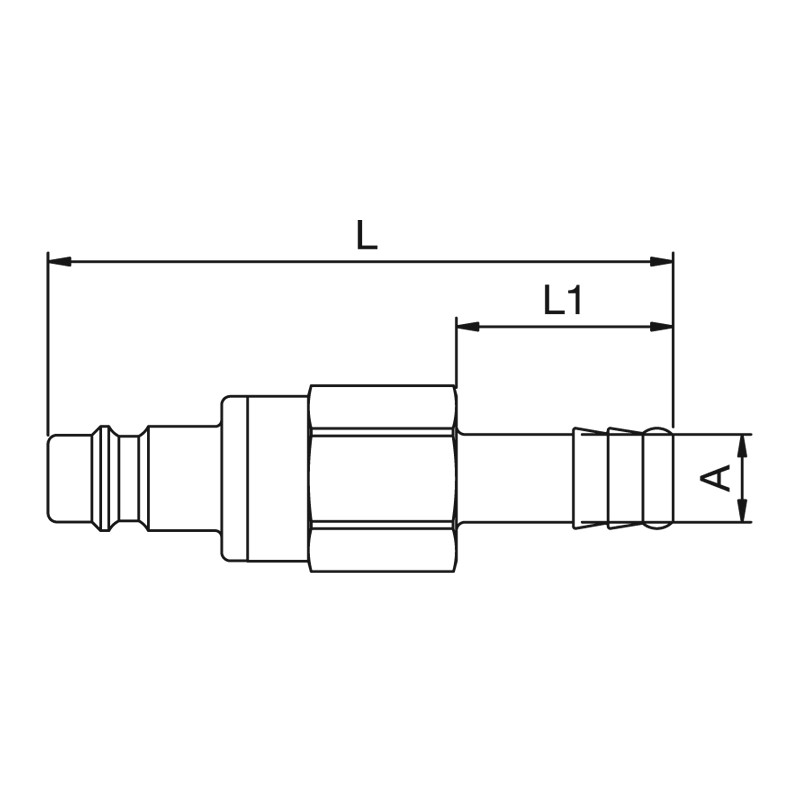

Connection: | Hose barb 9mm LW(3/8") |
Connection description: | Hose barb 9mm LW(3/8") |
Connection type: | Hose barb |
Material: | stainless steel AISI 303 |
Material description: | stainless steel AISI 303 |
Seal description: | Fluororubber |
Surface: | blank finish |
Material connection: | stainless steel AISI 303 |
Material valve: | stainless steel AISI 303 |
Material spring snap ring: | stainless steel AISI 301 |
Material seal: | Viton® |
Weight in kg: | 0,0578 |
Self-venting coupling: | No |
Safety locking system: | No |
Single-hand operation: | Yes |
Two-hand operation: | No |
Ball locking: | No |
Pin lock: | No |
Ultra-FLO-valve: | No |
Vacuum suitable: | No |
Water-resistant: | No |
Flat-sealing: | No |
Suitable breath / respiratory protection: | No |
Pressure eliminator: | No |
Hydraulics: | No |
Pneumatics: | Yes |
Standard product: | No |
Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
