25KBKK08RVX Quick coupling with hose nut and spring guard

Quick coupling double shut-off, with hose nut and spring guard 6 x 8 mm, nominal diameter 7,4, <35 bar, stainless steel AISI 303, seal FKM
€233.93 *

Prices incl. VAT plus shipping costs

Delivery time: 12-13 Workdays

Total: 233.93 *
Universal industrial coupling with standard European profile for use with gaseous, liquid and... more
Product information "25KBKK08RVX Quick coupling with hose nut and spring guard"
Universal industrial coupling with standard European profile for use with gaseous, liquid and aggressive medio. Coupling system with single-hand operation. UltraFlo valve for optimum flow and low pressure drop. The series stands out for its robust design and long service life even with the harshest use. The collar design minimises damage to the valve body.
Series: 25
Seal: FKM
Series long: 25KB
Bore in mm: 7,4
Bore area in mm²: 42
Advantages: One-hand operation. Robust structure. UltraFlo valve. The collar design minimises damage to the valve body.
Working pressure: 35 bar maximum static working pressure with safety factor 4 to 1.
Working temperature: -20°C up to +100°C (NBR) -40°C up to +120/150°C (EPDM) -15°C up to +200°C (FKM) depending on the medium.
Shut-Off: Quick coupling Double Shut-Off
Connection: Tube nut with spring guard 6 x 8 mm
Connection description: Tube nut with spring guard 6 x 8 mm
Connection type: Connection nut
Material: stainless steel AISI 303
Material description: stainless steel AISI 303
Seal description: Fluororubber
Surface: blank finish
Material connection: stainless steel AISI 303
Material valve body: stainless steel AISI 303
Material sleeve: stainless steel AISI 303
Material valve: stainless steel AISI 303
Material spring snap ring: stainless steel AISI 301
Material balls/pins: Stainless steel AISI 316
Material seal: Viton®
Weight in kg: 0,112
Self-venting coupling: No
Safety locking system: No
Single-hand operation: Yes
Two-hand operation: No
Ball locking: Yes
Pin lock: No
Ultra-FLO-valve: No
Vacuum suitable: No
Water-resistant: No
Flat-sealing: No
Suitable breath / respiratory protection: No
Pressure eliminator: No
Hydraulics: No
Pneumatics: Yes
Standard product: No
Mould coupling: No

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

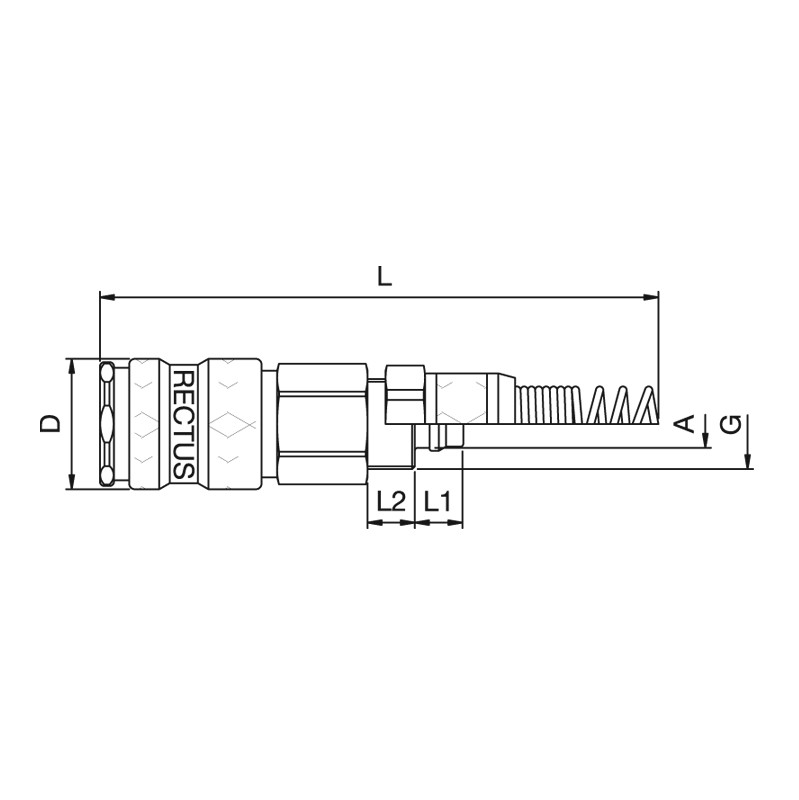

25KBKK08RVX
Connection A: 6 x 8 mm
D mm: 23
G mm: M 12 x 1
L mm: 144
L1 mm: 7
L2 mm: 6
SW mm: 19
