Product information "250PTHFC226 impulse nutrunner"

Impulse nutrunner with precise shut-off. Low air consuption due to integrated centrifugal regulator. Long operating times per service interval. Low vibration and noise.
Output: 3/4" Square Drive
Torque in Nm: 160 - 250
Weight in kg: 4
Idling speed rpm: 2.200
Air connection: female thread 3/8" NPT
Luftverbrauch Leerlauf / Pulsen in m³/min: 0,40 / 0,95
Air supply: down below
Idle sound dB(A): < 76
Hose size: Innen-Ø 1/2" (Ø 12,7 mm), max. 5 m lang
Screw size: M16
Vibrationen (m/s²): < 2,5
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

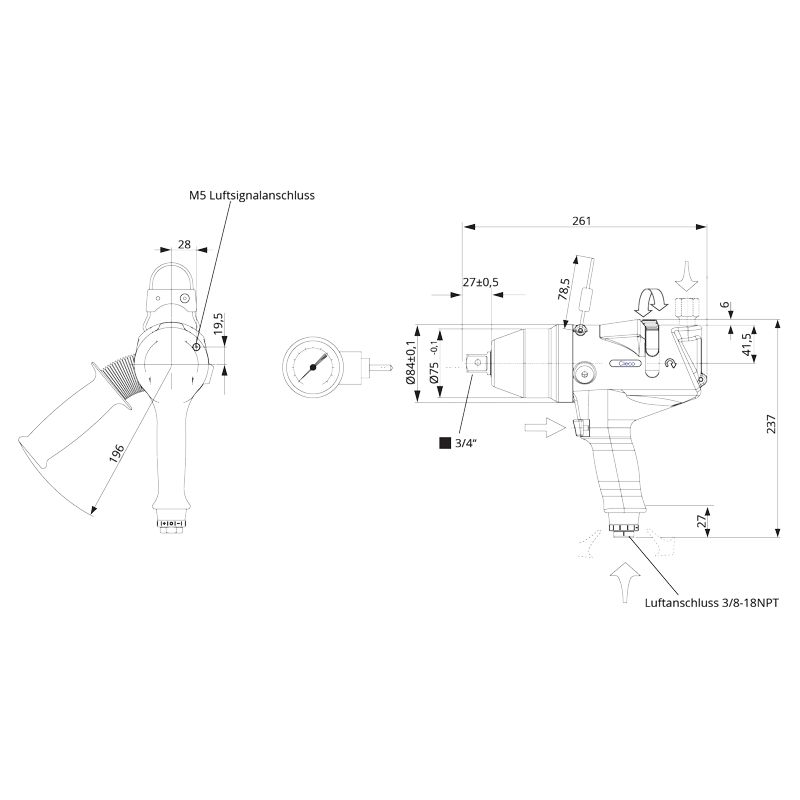

250PTHF Technische Zeichnung
Length in mm: 261
Side to center in mm: 42
