Series: | 21 |
Seal: | EPDM |
Series long: | 21KA |
Bore in mm: | 5 |
Bore area in mm²: | 20 |
Advantages: | One-hand operation. Small dimensions. All variants are compatible. |
Compatibility: | RECTUS 90 |
Working pressure: | 35 bar maximum static working pressure with safety factor 4 to 1. |
Working temperature: | -20°C up to +100°C (NBR) -40°C up to +120/150°C (EPDM) -15°C up to +200°C (FKM) depending on the medium. |
Shut-Off: | Quick coupling Single Shut-Off |

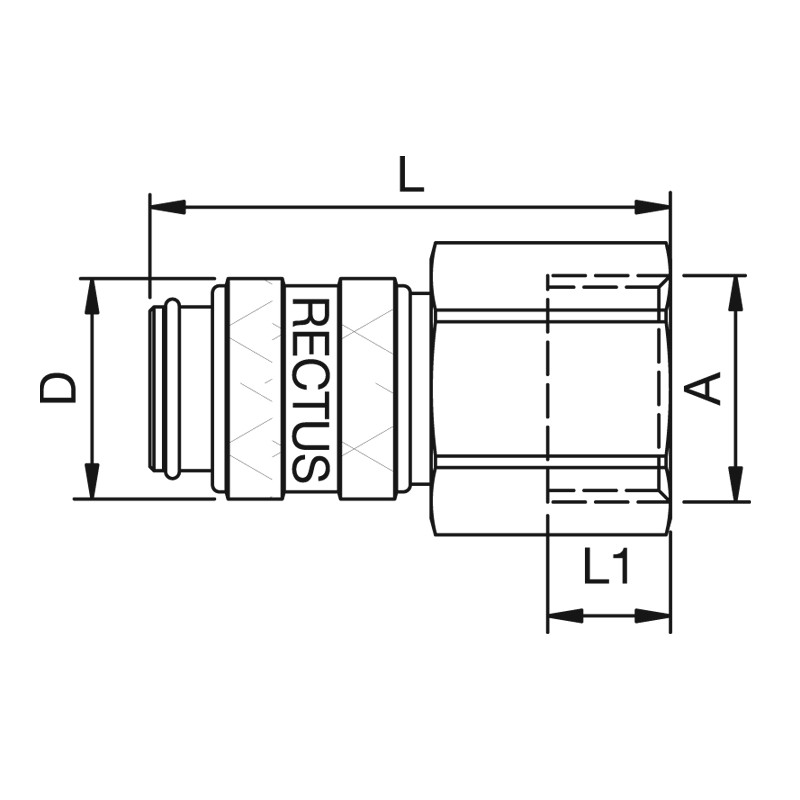

Connection: | Female thread 1/8" |
Connection description: | Female pipe thread of Whitworth form ISO 228 1/8" |
Connection type: | Female thread |
Material: | stainless steel AISI 303 |
Material description: | stainless steel AISI 303 |
Seal description: | Ethylene-propylene-diene rubber |
Surface: | blank finish |
Material connection: | stainless steel AISI 303 |
Material valve body: | stainless steel AISI 303 |
Material sleeve: | stainless steel AISI 303 |
Material valve: | stainless steel AISI 303 |
Material spring snap ring: | stainless steel AISI 301 |
Material balls/pins: | Stainless steel AISI 316 |
Weight in kg: | 0,0275 |
Self-venting coupling: | No |
Safety locking system: | No |
Single-hand operation: | Yes |
Two-hand operation: | No |
Ball locking: | Yes |
Pin lock: | No |
Ultra-FLO-valve: | No |
Vacuum suitable: | Yes |
Water-resistant: | Yes |
Flat-sealing: | No |
Suitable breath / respiratory protection: | No |
Pressure eliminator: | No |
Hydraulics: | No |
Pneumatics: | Yes |
Standard product: | No |
Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
