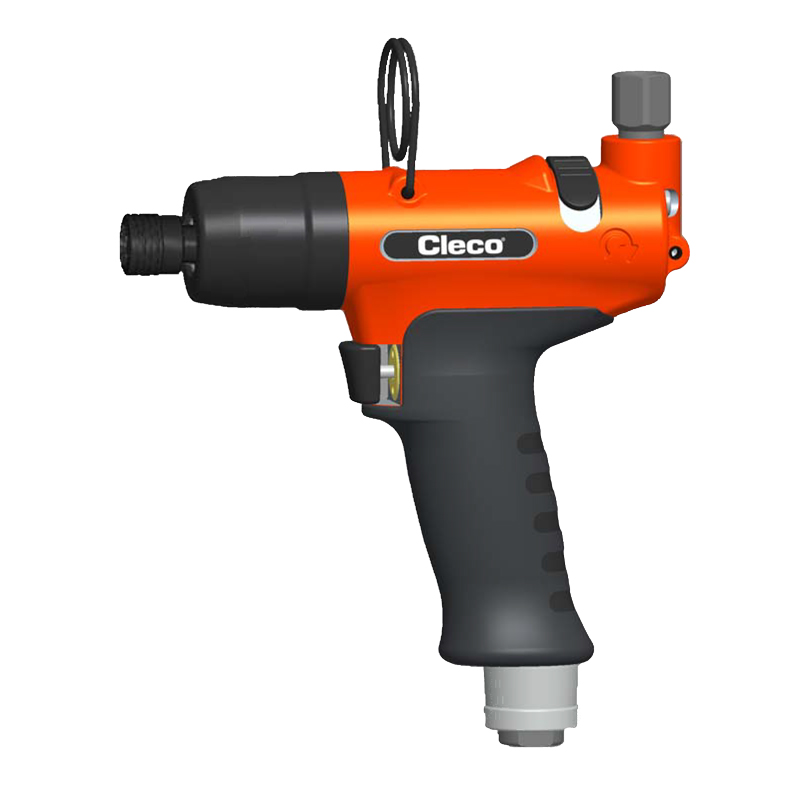

20PTHHA40Q impulse nutrunner

Impulse nutrunner shut-off model, 1/4" quick-action chuck, torque 10 - 20 Nm, idling speed 4.000 rpm, upper body air supply
Price on request

Delivery time on request

Call for price
Call for price
Please enter these characters in the following text field.

Fields with * are required
Impulse nutrunner with precise shut-off. Low air consuption due to integrated centrifugal... more
Product information "20PTHHA40Q impulse nutrunner"
Impulse nutrunner with precise shut-off. Low air consuption due to integrated centrifugal regulator. Long operating times per service interval. Low vibration and noise.
Output: 1/4" quick-action chuck
Torque in Nm: 10 - 20
Idling speed rpm: 4.000
Air supply: above
Luftverbrauch Leerlauf / Pulsen in m³/min: 0,10 / 0,25
Screw size: M7
Idle sound dB(A): < 75
Vibrationen (m/s²): < 1,0
Hose size: Innen-Ø 3/8" (Ø 9,5 mm), max. 5 m lang
Air connection: female thread 1/4" NPT
Weight in kg: 0,93

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

20PTHHA Technische Zeichnung
Side to center in mm: 21
Length in mm: 173
