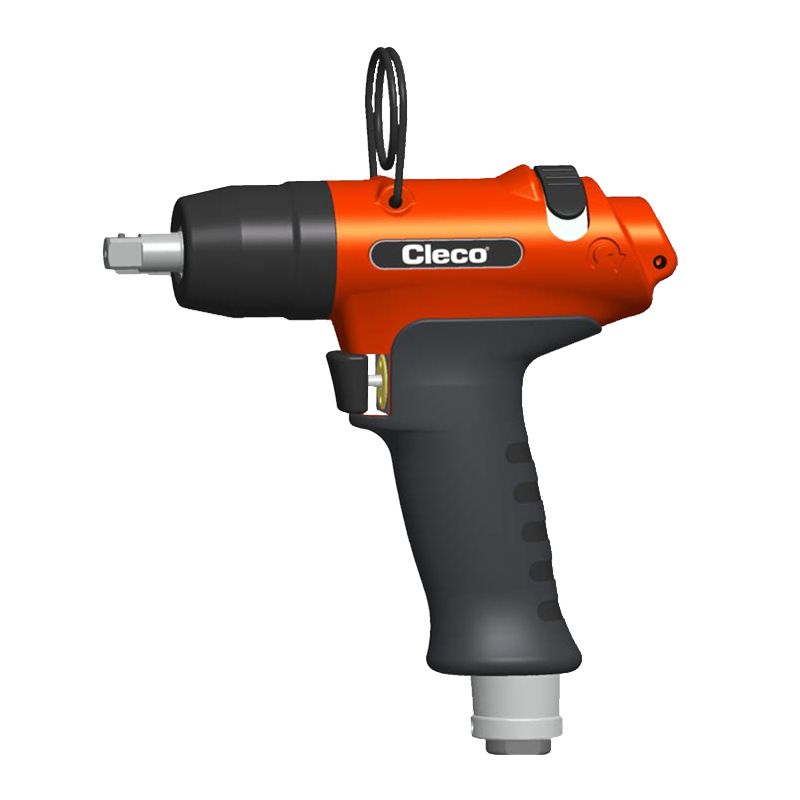

Product information "20PTHH403 impulse nutrunner"

Impulse nutrunner with precise shut-off. Low air consuption due to integrated centrifugal regulator. Long operating times per service interval. Low vibration and noise. quick-action chuck 7/16" available separately as an accessory.
Output: 3/8" Square Drive
Torque in Nm: 10 - 20
Weight in kg: 0,86
Idling speed rpm: 4.000
Air connection: female thread 1/4" NPT
Luftverbrauch Leerlauf / Pulsen in m³/min: 0,10 / 0,25
Air supply: down below
Idle sound dB(A): < 75
Hose size: Innen-Ø 3/8" (Ø 9,5 mm), max. 5 m lang
Screw size: M7
Vibrationen (m/s²): < 1,0
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

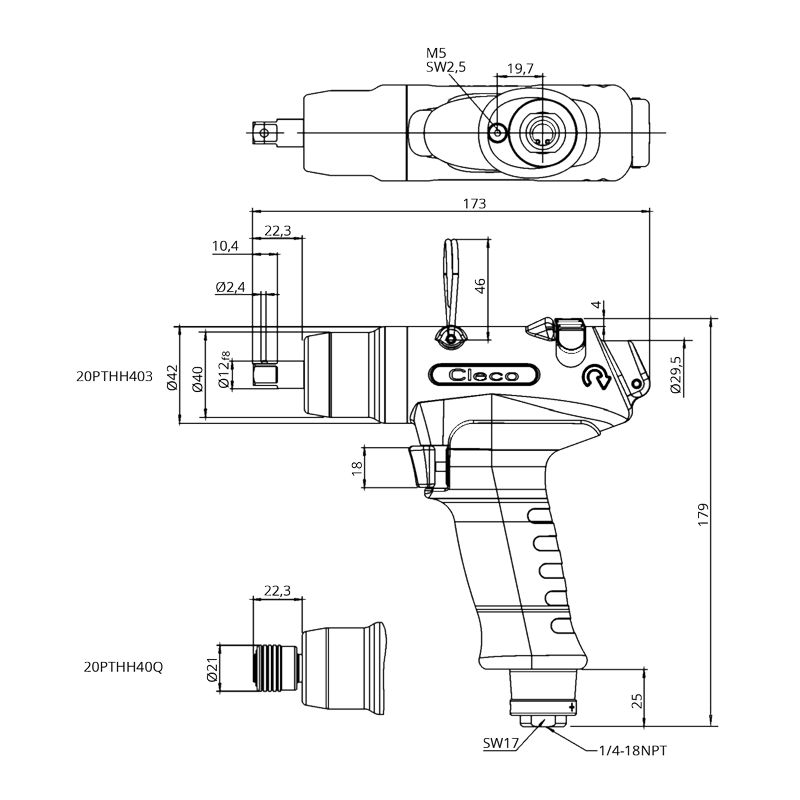

20PTHH Technische Zeichnung
Length in mm: 173
Side to center in mm: 21
