Series: | 19 |
Seal: | Without Seal |
Series long: | 19SF |
Bore in mm: | 5,5 |
Bore area in mm²: | 25 |
Advantages: | One-hand operation. The high insertion depth is guaranteed by an optimised plug guide. UltraFlo valve. |
Working pressure: | 35 bar maximum static working pressure with safety factor 4 to 1. |
Working temperature: | -20°C up to +100°C (NBR) -40°C up to +120/150°C (EPDM) -15°C up to +200°C (FKM) depending on the medium. |
Shut-Off: | Plug Straight-Through |

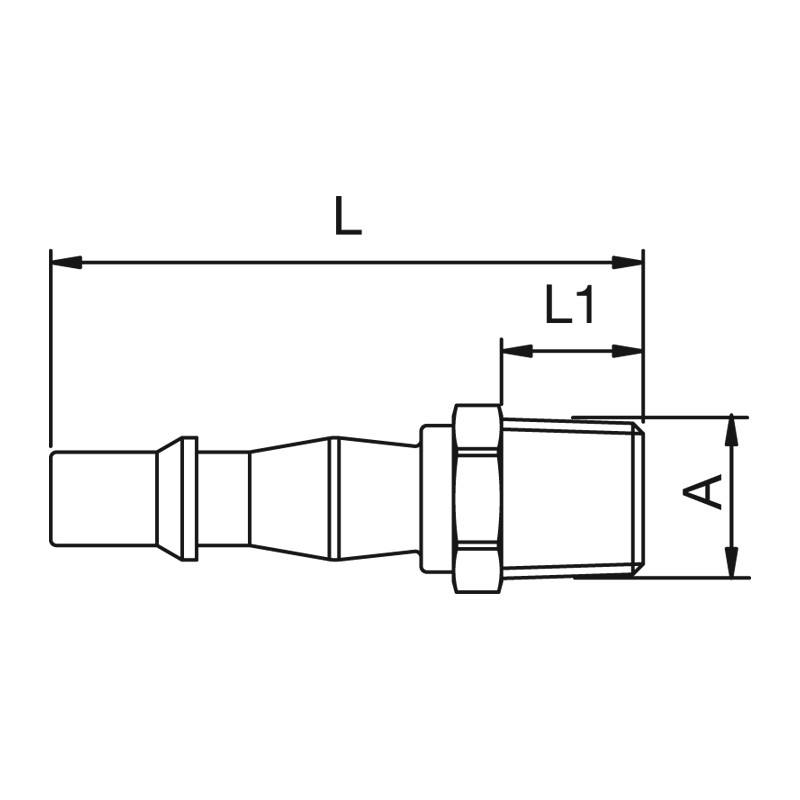

Connection: | Male thread 1/4" |
Connection description: | Male tapered thread of Whitworth form DIN 2999 1/4" |
Connection type: | Male thread |
Material: | Steel nickel-plated |
Material description: | Steel 9SMnPb28K 1.0718 |
Surface: | nickel plated |
Weight in kg: | 0,0218 |
Self-venting coupling: | No |
Safety locking system: | No |
Single-hand operation: | Yes |
Two-hand operation: | No |
Ball locking: | No |
Pin lock: | No |
Ultra-FLO-valve: | No |
Vacuum suitable: | Yes |
Water-resistant: | No |
Flat-sealing: | No |
Suitable breath / respiratory protection: | No |
Pressure eliminator: | No |
Hydraulics: | No |

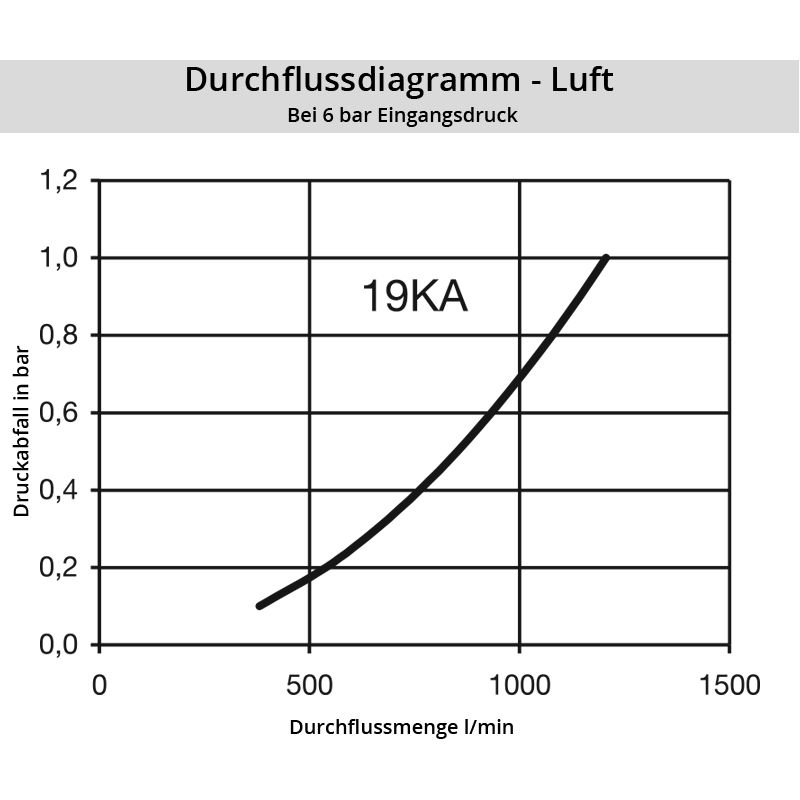

Pneumatics: | Yes |
Standard product: | No |
Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
