Robust, corrosion resistant coupling system in brass with high flow values for use with liquids in the pressure range up to 50 bar. Two-hand operation, i.e. both hands are required when connect/disconnect. The main seal of the coupling has a special disc shape, which extends the durability of the coupling. To guarantee greater flexibility, we also offer plugs with no valve.
| Series: | 1900 |
| Old order number: | 19420 MN |
| Series long: | 1900SB |
| Bore area in mm²: | 120 |

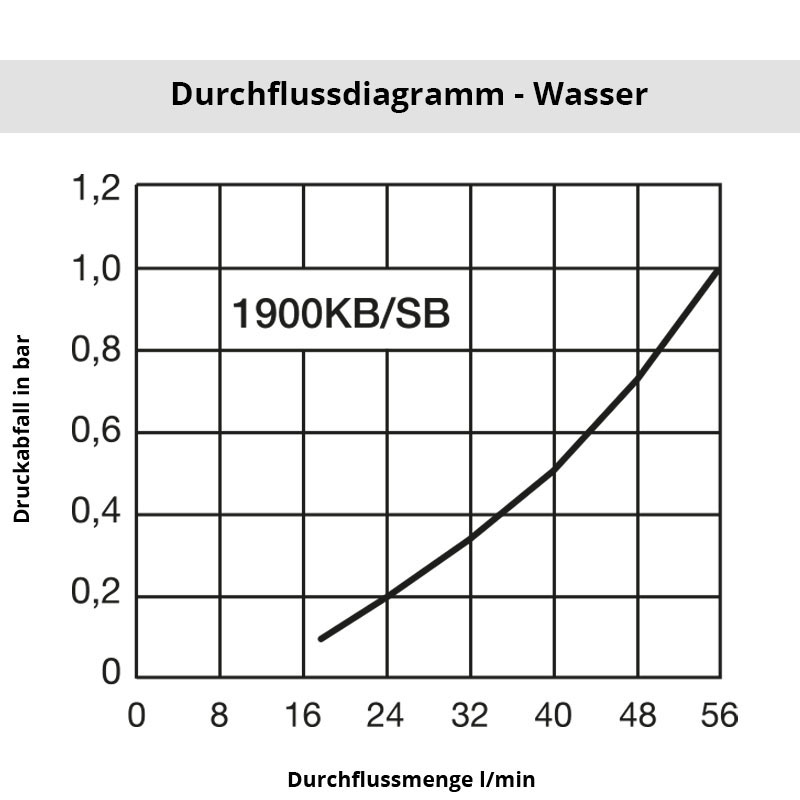

| Advantages: | High flow. Easy to operate. Long life of the seal. |
| Working pressure: | PB = 50 bar maximum static working pressure with safety factor 4 to 1. |
| Working temperature: | -20°C up to +100°C (NBR) -40°C up to +120/150°C (EPDM) -15°C up to +200°C (FKM) depending on the medium. |
| Shut-Off: | Plug Double Shut-Off |

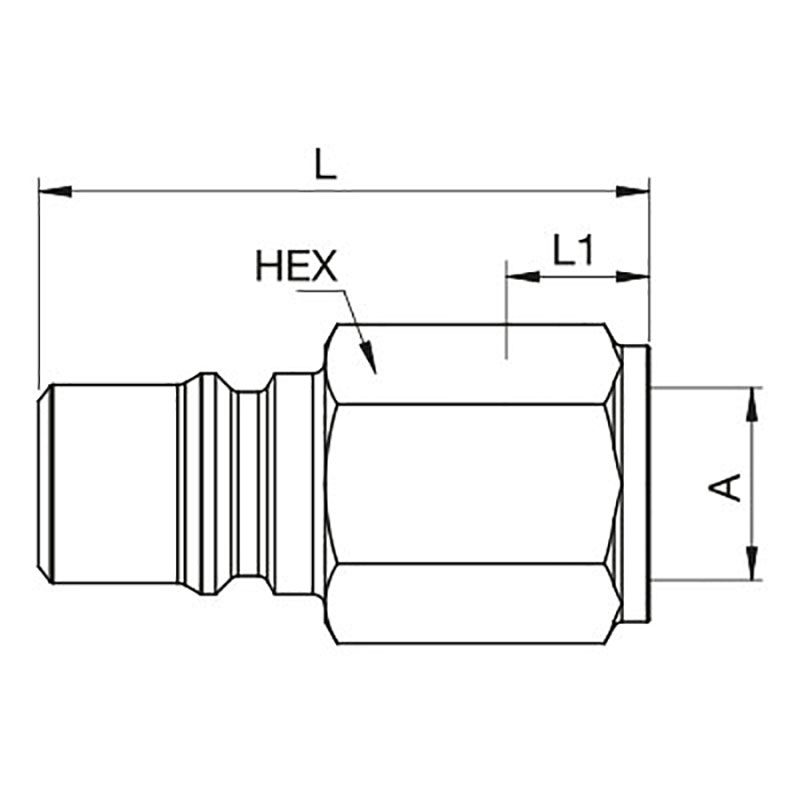

| Connection: | Female thread G 1/2 |
| Connection description: | Female thread G 1/2 |
| Material: | brass, chrome plated |
| Material description: | Brass CuZn39Pb3 2.0401 |
| Seal description: | Nitrite-butadiene rubber |
| Surface: | chrome plated |
| Material seal: | NBR |
| Weight in kg: | 0,12 |
| Self-venting coupling: | No |
| Safety locking system: | No |
| Single-hand operation: | No |
| Two-hand operation: | Yes |
| Ultra-FLO-valve: | No |
| Water-resistant: | No |
| Flat-sealing: | No |
| Suitable breath / respiratory protection: | No |
| Pressure eliminator: | No |
| Hydraulics: | No |
| Pneumatics: | Yes |
| Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
