1809 - Male stud elbows

Compression fittings Stainless steel, Male stud elbows

From €25.24 *

Available, delivery time:

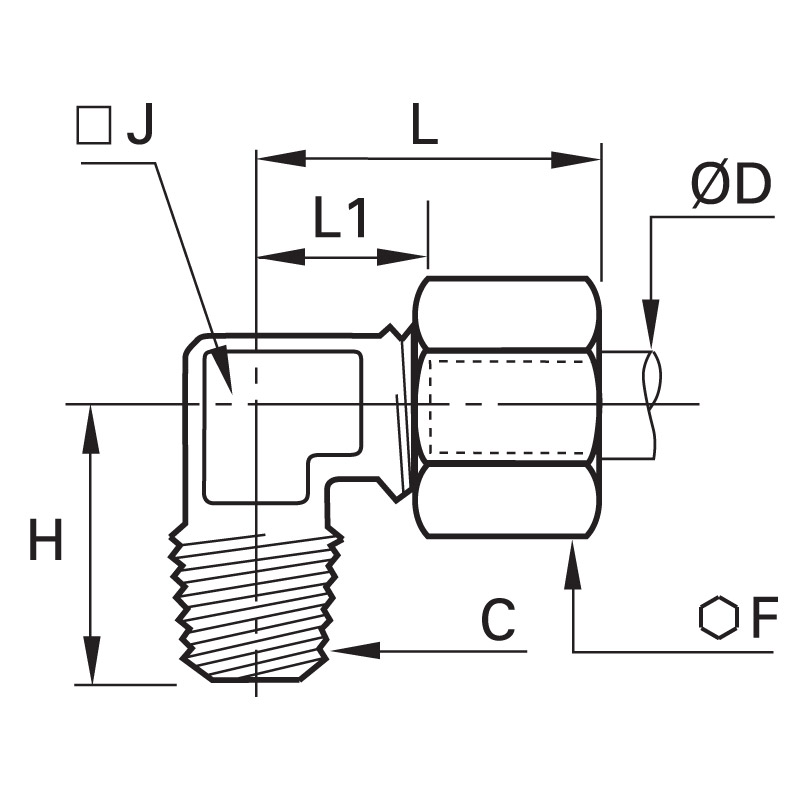

Product name	C	ØD	F	H	J	L max	L1	Price		Quantity
1809 06 10 Single banjo elbow connection	R1/8"	6 mm	13	18	8	25,5	13,5	€43.80	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 06 11 Single banjo elbow connection	NPT1/8"	6 mm	13	19,5	8	25,5	13,5	€25.24	This article is currently not available!
1809 06 13 Single banjo elbow connection	R1/4"	6 mm	13	23	10	25,5	13,5	€46.49	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 06 14 Single banjo elbow connection	NPT1/4"	6 mm	13	25,5	10	25,5	13,5	€41.97	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 06 18 Single banjo elbow connection	NPT3/8"	6 mm	13	28	12	27	15	Price on request	This article is currently not available!
1809 06 22 Single banjo elbow connection	NPT1/2"	6 mm	13	34	12	29	17	€43.30	This article is currently not available!
1809 08 10 Single banjo elbow connection	R1/8"	8 mm	14	20,5	10	28,5	14,5	€46.22	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 08 11 Single banjo elbow connection	NPT1/8"	8 mm	14	22	10	28,5	14,5	€41.97	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 08 13 Single banjo elbow connection	R1/4"	8 mm	14	23	10	28,5	14,5	€45.34	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 08 14 Single banjo elbow connection	NPT1/4"	8 mm	14	25,5	10	28,5	14,5	€42.94	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 10 13 Single banjo elbow connection	R1/4"	10 mm	19	25	12	32,5	16	€52.44	Available in 5 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 10 14 Single banjo elbow connection	NPT1/4"	10 mm	19	27,5	12	32,5	16	€52.90	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 10 17 Single banjo elbow connection	R3/8"	10 mm	19	25,5	12	32,5	16	€58.42	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 10 18 Single banjo elbow connection	NPT3/8"	10 mm	19	28	12	32,5	16	€55.51	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 10 21 Single banjo elbow connection	R1/2"	10 mm	19	32	18	36,5	20	€65.25	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 10 22 Single banjo elbow connection	NPT1/2"	10 mm	19	35	18	36,5	20	€70.11	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 12 13 Single banjo elbow connection	R1/4"	12 mm	22	26	14	34	17	€68.90	Available in 10 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 12 14 Single banjo elbow connection	NPT1/4"	12 mm	22	28,5	14	34	17	€37.44	This article is currently not available!
1809 12 17 Single banjo elbow connection	R3/8"	12 mm	22	27	14	34	17	€78.67	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 12 18 Single banjo elbow connection	NPT3/8"	12 mm	22	29,5	14	34	17	€40.53	This article is currently not available!
1809 12 21 Single banjo elbow connection	R1/2"	12 mm	22	32	18	37	20	€77.42	Available in 15 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 12 22 Single banjo elbow connection	NPT1/2"	12 mm	22	35	18	37	20	€76.54	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 16 17 Single banjo elbow connection	R3/8"	16 mm	27	28,5	18	39,5	21	€101.99	Available in 50 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 16 18 Single banjo elbow connection	NPT3/8"	16 mm	27	31	18	39,5	21	Price on request	This article is currently not available!
1809 16 21 Single banjo elbow connection	R1/2"	16 mm	27	31,5	18	39,5	21	€114.55	Available in 20 days, transport time 1-2 working days	Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
1809 16 22 Single banjo elbow connection	NPT1/2"	16 mm	27	34,5	18	39,5	21	Price on request	This article is currently not available!

Product information "1809 - Male stud elbows"

Single banjo elbow connection between tube and male thread. Stainless steel AISI 316 L, offers excellent resistance to aggressive fluids and corrosive environments. Available from 6 to 16 mm o.d..

Material:	Stainless steel 316l
max. temperature in °C:	250
min. temperature in °C:	-60
RoHS compliant:	Yes
Material body:	Stainless steel 316l
Material gripping ring:	Stainless steel 316l
Material union nut:	Stainless steel 316l

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
