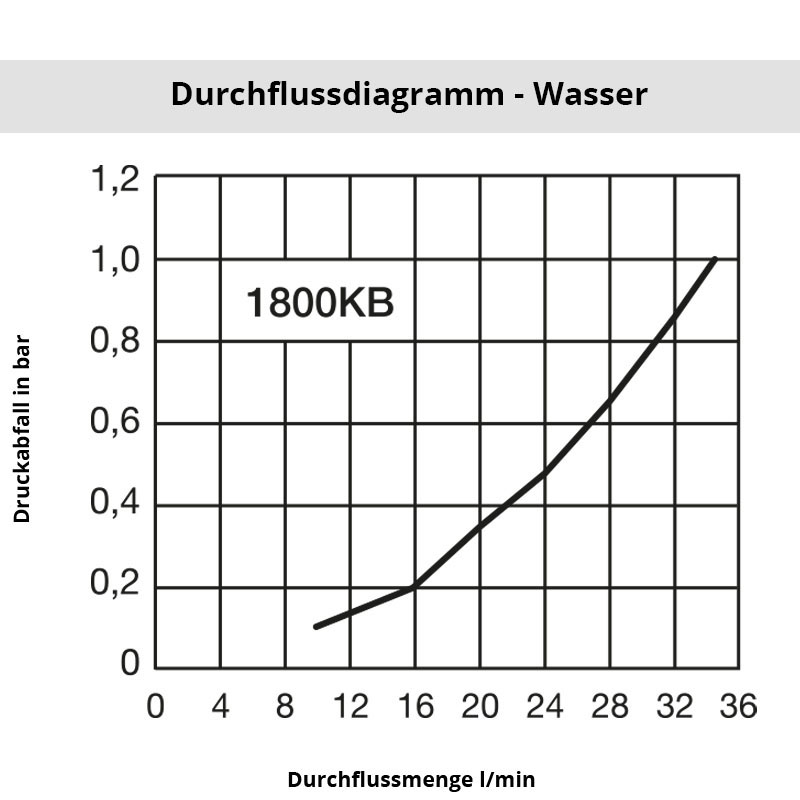

Series 1800 is used mainly for applications in the area of compressed air and liquids. The coupling system stands out for its robust, compact design and high corrosion resistance. Ultra High Flow valve for optimum flow and low pressure drop.
| Series: | 1800 |
| Old order number: | 18410 RV |
| Series long: | 1800SB |
| Advantages: | High flow. Two-hand operation. Robust and compact build. |
| Working pressure: | PB = 50 bar maximum static working pressure with safety factor 4 to 1. |
| Working temperature: | -20°C up to +100°C (NBR) -40°C up to +120/150°C (EPDM) -15°C up to +200°C (FKM) depending on the medium. |
| Shut-Off: | Plug Double Shut-Off |
| Connection: | Female thread G 3/8 |
| Connection description: | Female thread G 3/8 |
| Material: | stainless steel AISI 316 L |
| Material description: | stainless steel 1.4404 |
| Seal description: | Fluororubber |
| Surface: | blank finish |
| Material seal: | FKM |
| Weight in kg: | 0,064 |
| Self-venting coupling: | No |
| Safety locking system: | No |
| Single-hand operation: | No |
| Two-hand operation: | Yes |
| Ultra-FLO-valve: | Yes |
| Water-resistant: | No |
| Flat-sealing: | No |
| Suitable breath / respiratory protection: | No |
| Pressure eliminator: | No |
| Hydraulics: | No |
| Pneumatics: | Yes |
| Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
