Series: | 14 |
Seal: | NBR |
Series long: | 14KE |
Bore in mm: | 5,5 |
Bore area in mm²: | 25 |
Advantages: | Das System erfüllt die Forderungen der ISO 4414. - erhöhter Sicherheitsstandard am Arbeitsplatz - kein Verkratzen der Arbeitsoberfläche durch die Kunststoffentriegelungshülse |
Additional information: | Reliable functioning can only be guaranteed in conjunction with original Parker Rectus plugs made of steel. |
Working pressure: | 12 bar maximum static working pressure with safety factor 4 to 1. |
Working temperature: | -20°C up to +60°C (NBR) depending on the medium. |
Shut-Off: | Quick coupling Self-Venting system |

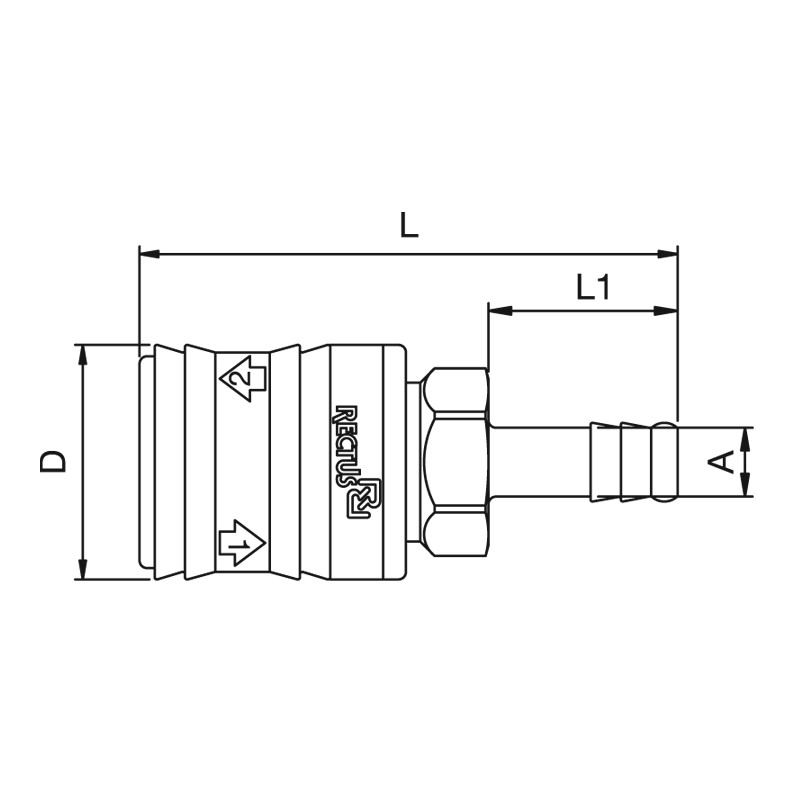

Connection: | Hose barb 6mm LW(1/4") |
Connection description: | Hose barb 6mm LW(1/4") |
Connection type: | Hose barb |
Material: | Brass nickel plated |
Material description: | Brass CuZn39Pb3 2.0401 (except sleeve) |
Seal description: | Nitrite-butadiene rubber |
Surface: | nickel plated |
Material connection: | Brass nickel plated |
Material valve body: | Brass nickel plated |
Material sleeve: | Plastic |
Material valve: | Brass |
Material spring snap ring: | stainless steel AISI 301 |
Material balls/pins: | Stainless steel AISI 420 |
Material seal: | Perbunan® |
Weight in kg: | 0,1047 |
Self-venting coupling: | Yes |
Safety locking system: | Yes |
Single-hand operation: | Yes |
Two-hand operation: | No |
Ball locking: | Yes |
Pin lock: | Yes |
Ultra-FLO-valve: | No |
Vacuum suitable: | Yes |
Water-resistant: | No |
Flat-sealing: | No |
Suitable breath / respiratory protection: | No |
Pressure eliminator: | No |
Hydraulics: | No |
Pneumatics: | Yes |
Standard product: | No |
Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
