Series: | 1423 |
Seal: | NBR |
Series long: | 1423KA |
Bore in mm: | 5,5 |
Bore area in mm²: | 25 |
Advantages: | One-hand operation. UltraFlo valve. Reduced coupling forces. Ergonomic plastic sleeve. |

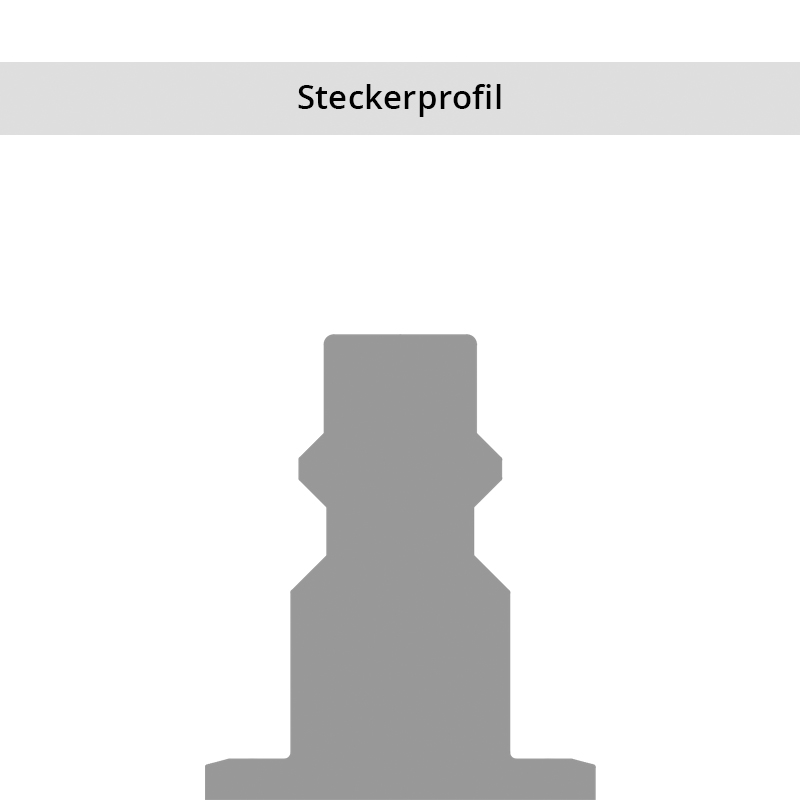

Compatibility: | INDUSTR. INTERCHANGE 1/4" US-MIL-SPEC-C-4109 ISO 6150 B RECTUS 23 + 24 RECTUS 1400 TEMA 1400 PARKER 20 1/4" + 30 1/4" |
Working pressure: | 35 bar maximum static working pressure with safety factor 4 to 1. |
Working temperature: | -20°C up to +80°C (NBR) -20°C up to +80°C (EPDM) -20°C up to +80°C (FKM) depending on the medium. |
Shut-Off: | Quick coupling Single Shut-Off |

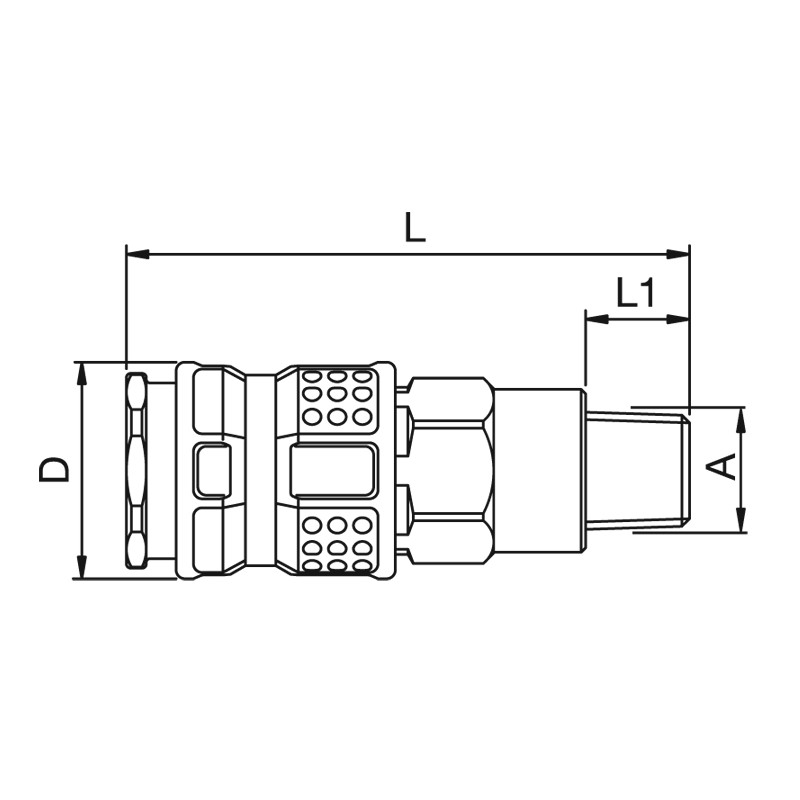

Connection: | Male thread 1/2" |
Connection description: | Male tapered thread of Whitworth form DIN 2999 1/2" |
Connection type: | Male thread |
Material: | Steel nickel-plated |
Material description: | Steel 9SMnPb28K 1.0718 |
Seal description: | Nitrite-butadiene rubber |
Surface: | nickel plated |
Material connection: | Brass nickel plated |
Material valve body: | Steel, QPQ treated |
Material sleeve: | PA6 + TPE |
Material valve: | Brass |
Material spring snap ring: | stainless steel AISI 301 |
Material balls/pins: | Stainless steel AISI 420 |
Material seal: | Perbunan® |
Weight in kg: | 0,098 |
Self-venting coupling: | No |
Safety locking system: | No |
Single-hand operation: | Yes |
Two-hand operation: | No |
Ball locking: | Yes |
Pin lock: | Yes |
Ultra-FLO-valve: | Yes |
Vacuum suitable: | Yes |
Water-resistant: | No |
Flat-sealing: | No |
Suitable breath / respiratory protection: | No |
Pressure eliminator: | No |
Hydraulics: | No |
Pneumatics: | Yes |
Standard product: | No |
Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
