Series 1300 is used mainly for applications in the area of compressed air and liquids. Optimally suited to smaller to medium-sized pneumatic systems and to compressed air tools. The coupling series stands out for its compact design and high flow rates with the Ultra High Flow valve. Coupling body made of nitrocarburized steel.
| Series: | 1300 |
| Old order number: | 31SFIW10SXZ; 13405 |
| Series long: | 1300SF |
| Bore area in mm²: | 43 |
| Advantages: | High flow. Single handed operation. Long life of the seal. |
| Compatibility: | Rectus 31 |
| Working pressure: | 30 bar maximum static working pressure with safety factor 4 to 1. |
| Working temperature: | -20°C up to +100°C (NBR) -40°C up to +120/150°C (EPDM) -15°C up to +200°C (FKM) depending on the medium. |
| Shut-Off: | Plug Straight-Through |

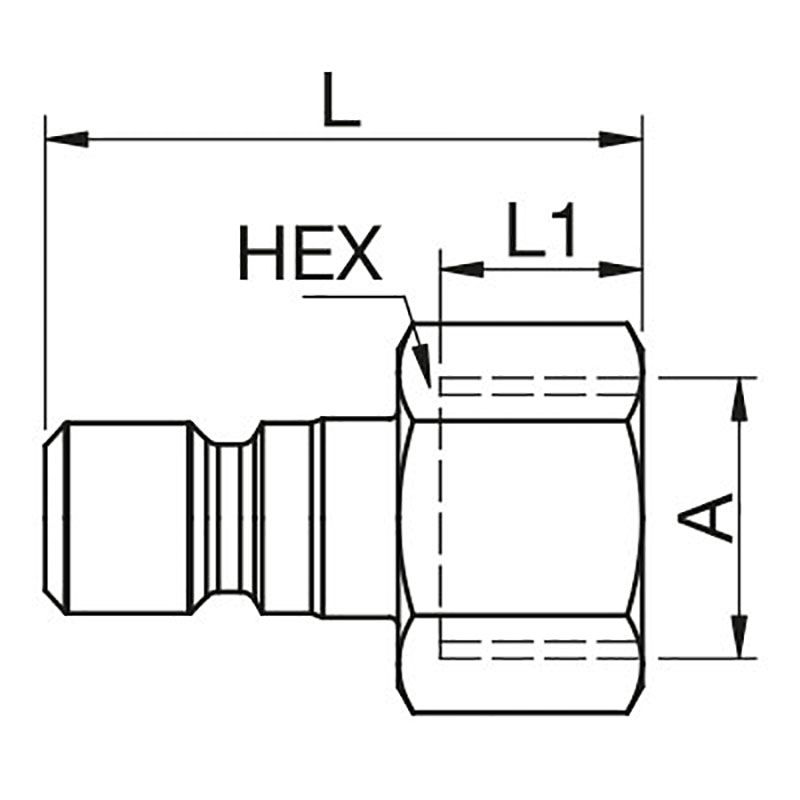

| Connection: | Female thread G 1/8 |
| Connection description: | Female thread G 1/8 |
| Material: | Steel, zinc-plated |
| Material description: | Steel 9SMnPb28K 1.0718 |
| Surface: | zinc plated |
| Weight in kg: | 0,017 |
| Self-venting coupling: | No |
| Safety locking system: | No |
| Single-hand operation: | Yes |
| Two-hand operation: | No |
| Ultra-FLO-valve: | Yes |
| Water-resistant: | No |
| Flat-sealing: | No |
| Suitable breath / respiratory protection: | No |
| Pressure eliminator: | No |
| Hydraulics: | No |
| Pneumatics: | Yes |
| Mould coupling: | No |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
