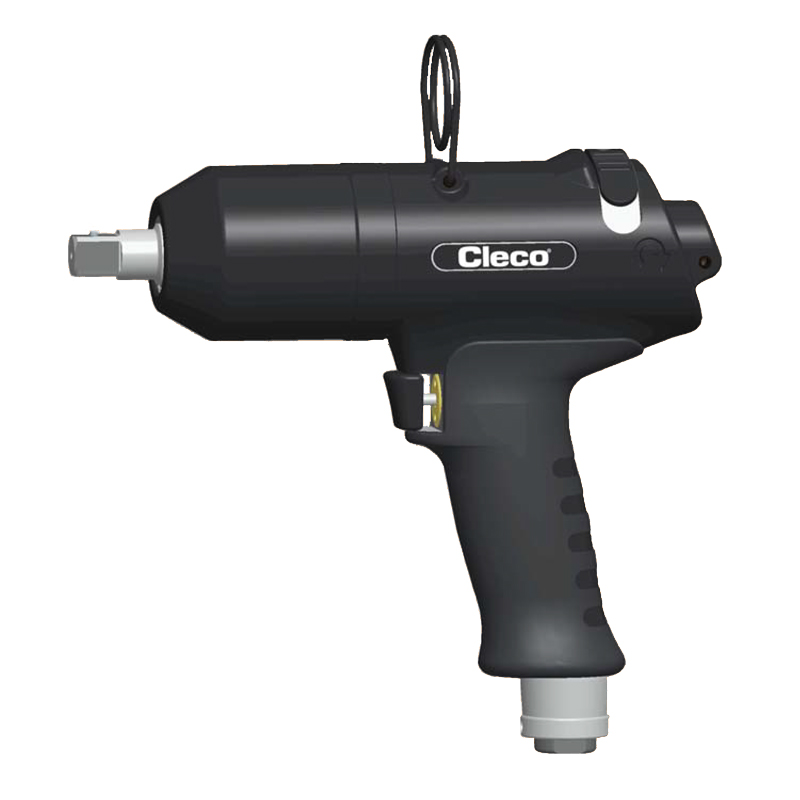

Product information "120PHH554 impulse nutrunner"

non-shut-off impulse nutrunner. Low air consuption due to integrated centrifugal regulator. Long operating times per service interval. Low vibration and noise.
Output: 1/2" Square Drive
Torque in Nm: 120
Weight in kg: 1,65
Idling speed rpm: 5.500
Air connection: female thread 1/4" NPT
Luftverbrauch Leerlauf / Pulsen in m³/min: 0,85
Air supply: down below
Idle sound dB(A): < 80
Hose size: Innen-Ø 3/8" (Ø 9,5 mm), max. 5 m lang
Screw size: M12
Vibrationen (m/s²): < 2,0
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

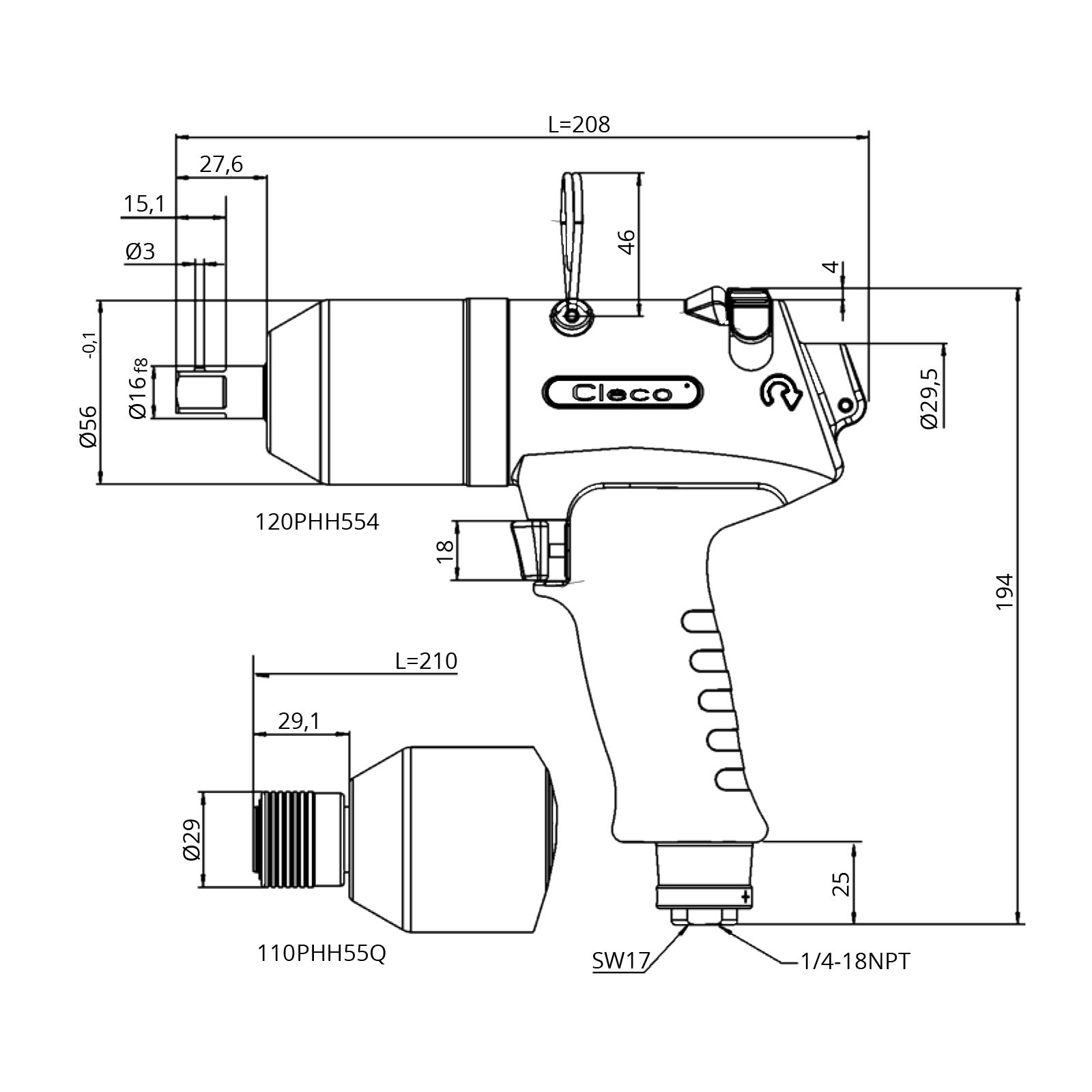

120PHH Technische Zeichnung
Length in mm: 208
Side to center in mm: 28,5
Skip product gallery

Zubehör

approx. 10 workdays
Protective cover for 110/120PTHH/110/120PHH
Protective cover for 110/120PTHH/110/120PHH
Protective cover fitting 110/120PTHH/110/120PHH

€97.34
4-6 workdays
936695PT - Reserve oil filling set
936695PT - Reserve oil filling set
Reserve oil filling set

€186.83
