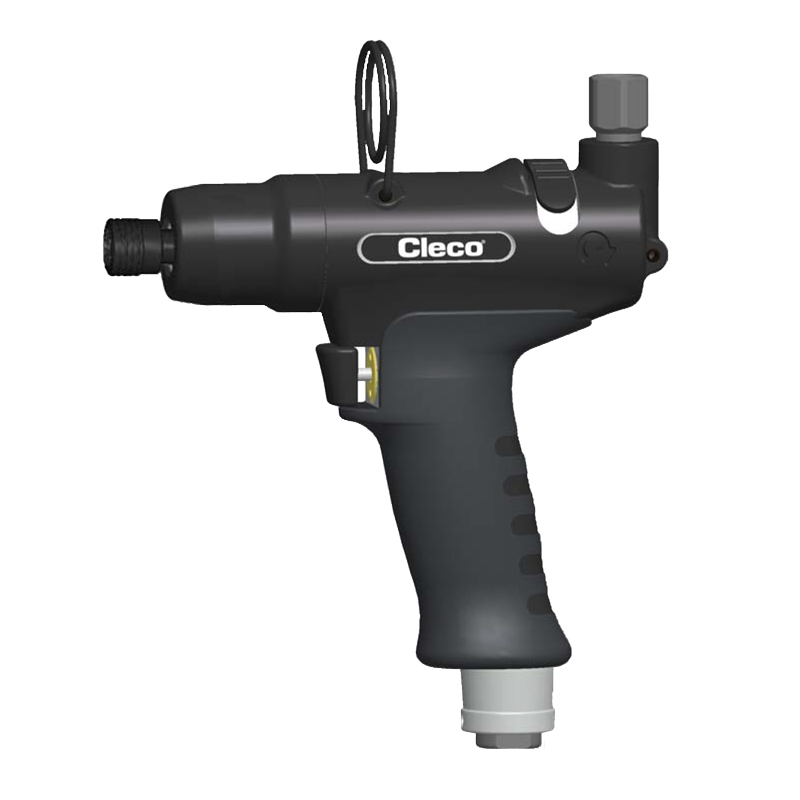

Product information "11PHHA65Q impulse nutrunner"

non-shut-off impulse nutrunner. Low air consuption due to integrated centrifugal regulator. Long operating times per service interval. Low vibration and noise.
Output: 1/4" quick-action chuck
Torque in Nm: 11
Weight in kg: 0,89
Idling speed rpm: 6.500
Air connection: female thread 1/4" NPT
Luftverbrauch Leerlauf / Pulsen in m³/min: 0,30
Air supply: above
Idle sound dB(A): < 75
Hose size: Innen-Ø 3/8" (Ø 9,5 mm), max. 5 m lang
Screw size: M6
Vibrationen (m/s²): < 1,7
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.


11PHHA Technische Zeichnung
Length in mm: 173
Side to center in mm: 21
