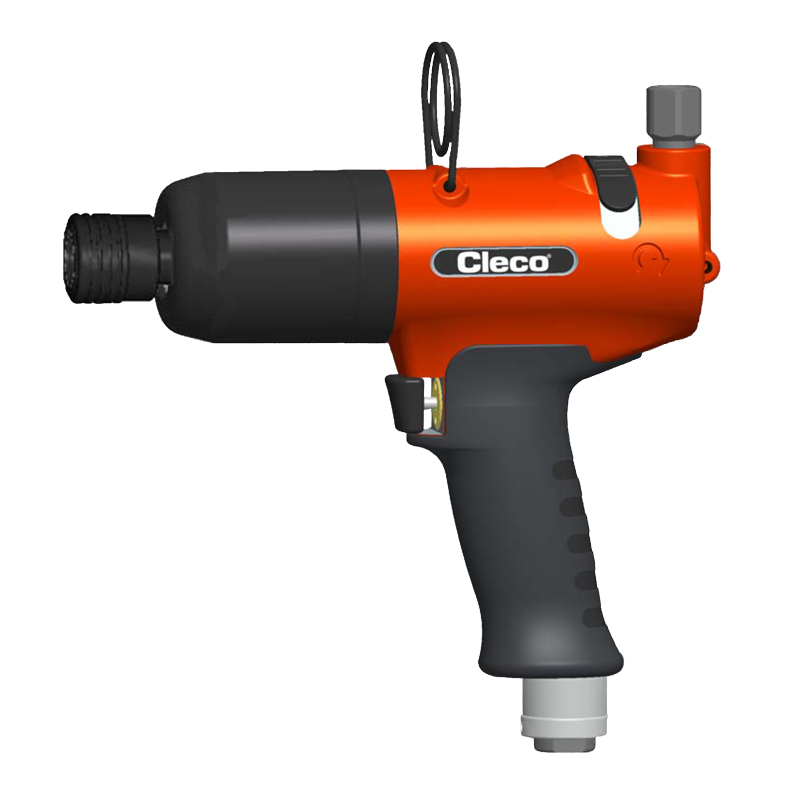

Product information "110PTHHA30Q impulse nutrunner"

Impulse nutrunner with precise shut-off. Low air consuption due to integrated centrifugal regulator. Long operating times per service interval. Low vibration and noise.
Output: 7/16" quick-action chuck
Torque in Nm: 75 - 110
Weight in kg: 1,75
Idling speed rpm: 3.000
Air connection: female thread 1/4" NPT
Luftverbrauch Leerlauf / Pulsen in m³/min: 0,20 / 0,55
Air supply: above
Idle sound dB(A): < 78
Hose size: Innen-Ø 3/8" (Ø 9,5 mm), max. 5 m lang
Screw size: M12
Vibrationen (m/s²): < 1,0
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

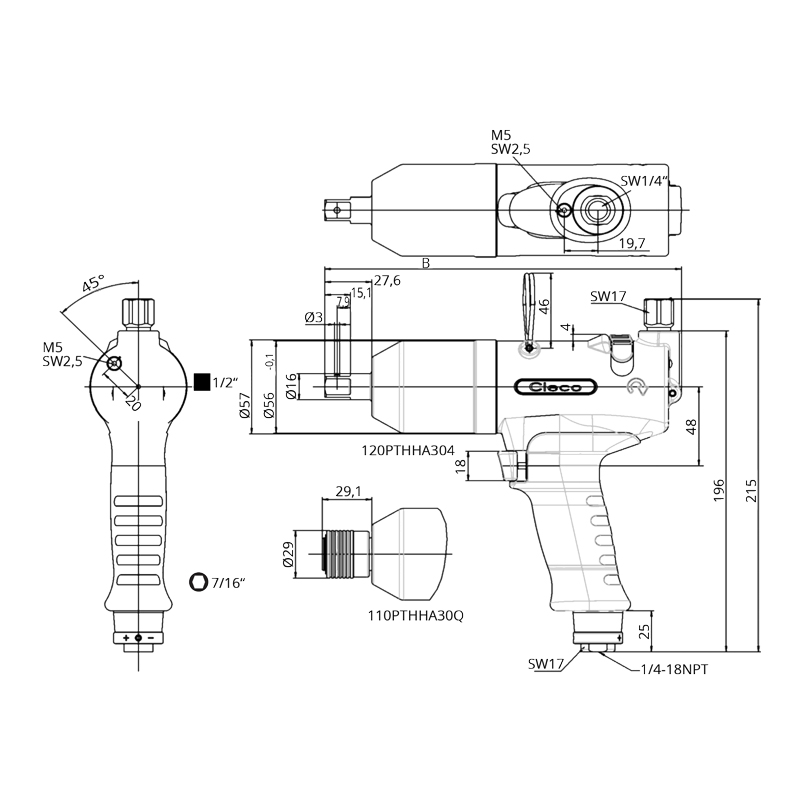

120PTHHA Technische Zeichnung
Length in mm: 210
Side to center in mm: 28,5
