Flatface coupling system for cooling circuits. Extremely low leakage when disconnecting and, at the same time, no air lock in the system. Use with cold water, hot water and with thermo-oil at temperatures of up to 200 °C. Top efficiency with maximum flow and liwithed pressure drop.
| Series: | 006 |
| Seal: | FKM |
| Series long: | 006KL |
| Bore in mm: | 6 |
| Bore area in mm²: | 30 |
| Advantages: | Easy to handle with singlehanded operation and the knurled sleeve design. Extremely durable due to the robust design.. |
| Working pressure: | PB = 60 bar maximum static working pressure with safety factor 4 to 1. |
| Working temperature: | -15°C up to +200°C (FKM) depending on the medium |
| Shut-Off: | Quick coupling Dry-Break (double shut-off) |

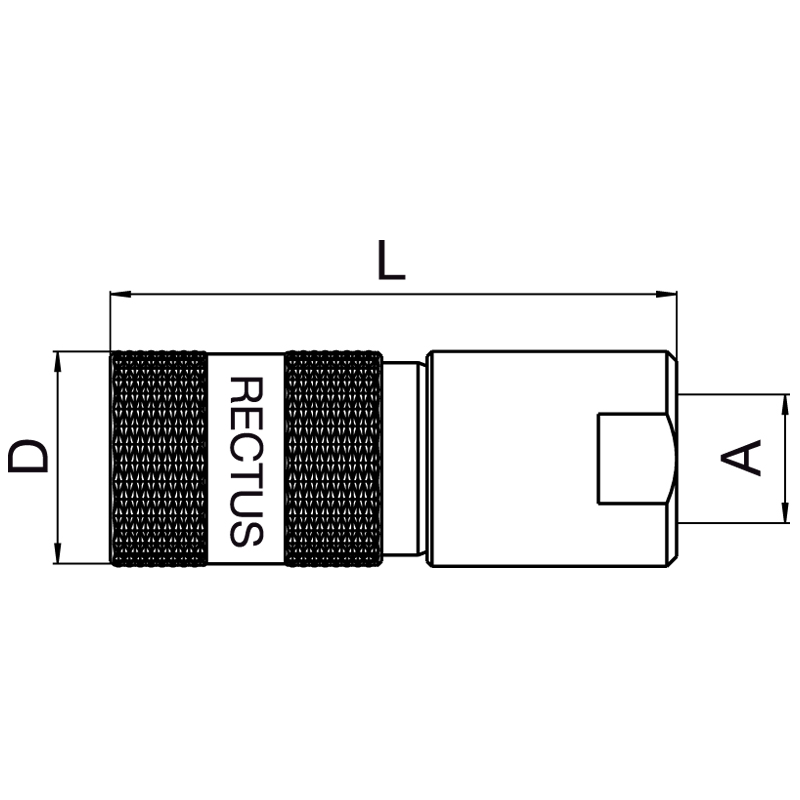

| Connection: | Female thread 1/4" |
| Connection description: | Female pipe thread of Whitworth form ISO 228 1/4" |
| Connection type: | Female thread |
| Material: | Brass |
| Material description: | Brass CuZn39Pb3 2.0401 (except sleeve) |
| Seal description: | Fluororubber |
| Surface: | blank finish |
| Material connection: | Brass |
| Material valve body: | stainless steel AISI 303 |
| Material sleeve: | stainless steel AISI 303 |
| Material valve: | Brass nickel plated |
| Material spring snap ring: | stainless steel AISI 301 |
| Material balls/pins: | Stainless steel AISI 420 |
| Material seal: | Viton® |
| Weight in kg: | 0,1102 |
| Self-venting coupling: | No |
| Safety locking system: | No |
| Single-hand operation: | Yes |
| Two-hand operation: | No |
| Ball locking: | Yes |
| Pin lock: | No |
| Ultra-FLO-valve: | No |
| Vacuum suitable: | Yes |
| Water-resistant: | Yes |
| Flat-sealing: | Yes |
| Suitable breath / respiratory protection: | No |
| Pressure eliminator: | No |
| Hydraulics: | No |
| Pneumatics: | No |
| Standard product: | No |
| Mould coupling: | Yes |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
