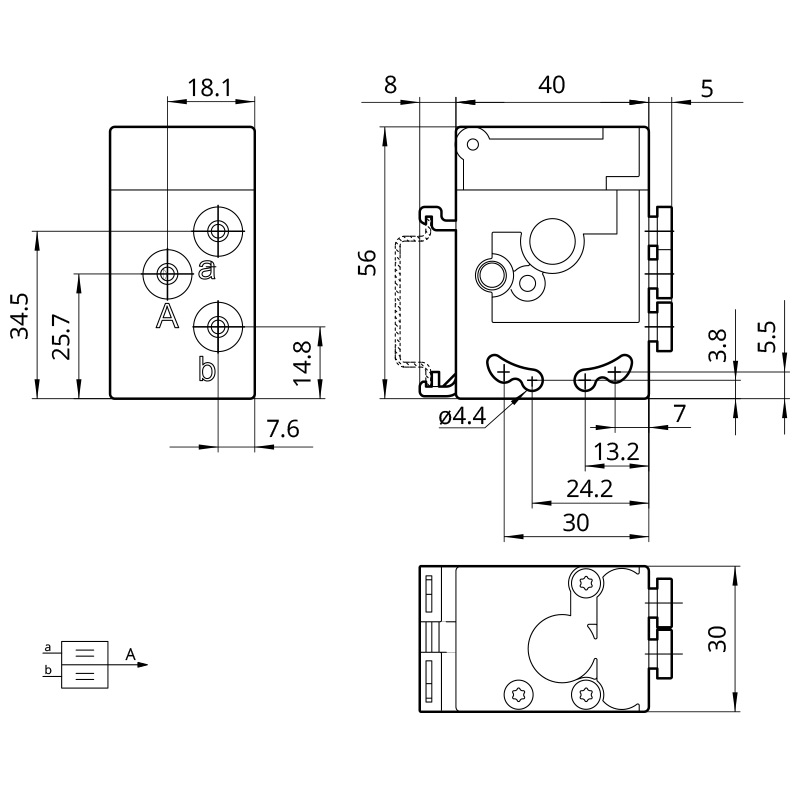

Safety valve for Two hand safety module.
The most common application involves connecting a manual button-controlled valve to each of the inputs and using the output signal as a start-of-cycle control for a pneumatically-operated machine.
The most common application involves connecting a manual button-controlled valve to each of the inputs and using the output signal as a start-of-cycle control for a pneumatically-operated machine.
| Flow rate in l/min: | 85 (at 6 bar) |
| Medium suitability: | Gefilterte, ungeölte Druckluft max 50 μm |
| Working pressure: | 2,5 – 8 bar |
| Bore in mm: | 2,7 |
| Material spring: | Stainless steel |
| Material body: | Technopolymer |
| Weight in kg: | 0,04 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
Available downloads:
3D Modell
