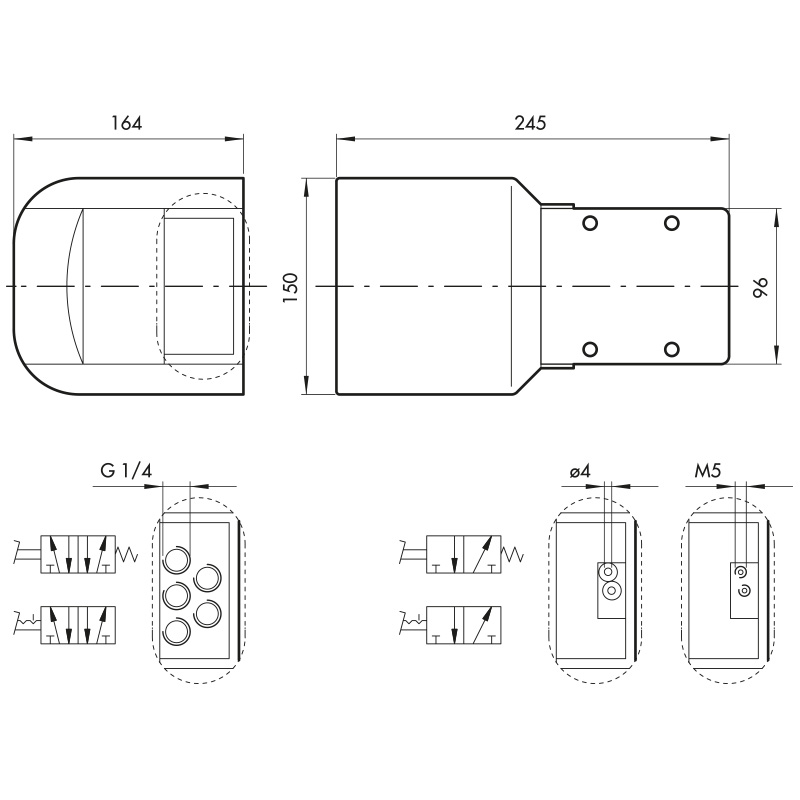

The valves series PEV with pedal are available in a wide range:
• 5/2 1/4" monostable and bistable with guarded pedal
• 3/2 monostable, pedal not guarded
• 3/2 Ø4 monostable, pedal not guarded
• 3/2 M5 in monostable and bistable configuration with guarded pedal
• 3/2 Ø4 in monostable and bistable configuration with guarded pedal
• 5/2 1/4" monostable and bistable with guarded pedal
• 3/2 monostable, pedal not guarded
• 3/2 Ø4 monostable, pedal not guarded
• 3/2 M5 in monostable and bistable configuration with guarded pedal
• 3/2 Ø4 in monostable and bistable configuration with guarded pedal

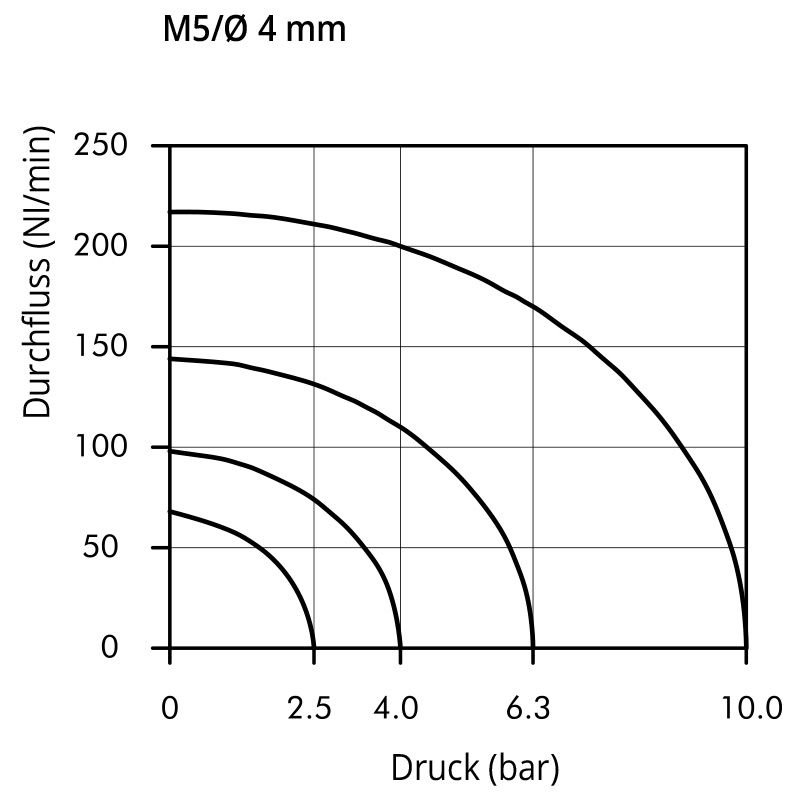

| Flow rate in l/min: | 145 (at 6,3 bar) |
| Medium suitability: | Filtered air without lubrication; lubrication, if used, must be continuous |
| Connection: | Female thread M 5 |
| Working temperature: | -10°C – +60°C |
| Additional information: | The pedal-down position is maintained by a lever. When the foot presses on the lever, the pedal releases and can rise. |
| Working pressure: | 2,5 – 10 bar |
| Function: | bistable, guarded |
| Weight in kg: | 0,89 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
Available downloads:
3D Modell
