The valves series PEV with pedal are available in a wide range: • 5/2 1/4" monostable and bistable with guarded pedal • 3/2 monostable, pedal not guarded • 3/2 Ø4 monostable, pedal not guarded • 3/2 M5 in monostable and bistable configuration with guarded pedal • 3/2 Ø4 in monostable and bistable configuration with guarded pedal
Connection:
Female thread 1/4"
Working pressure:
2,5 – 10 bar

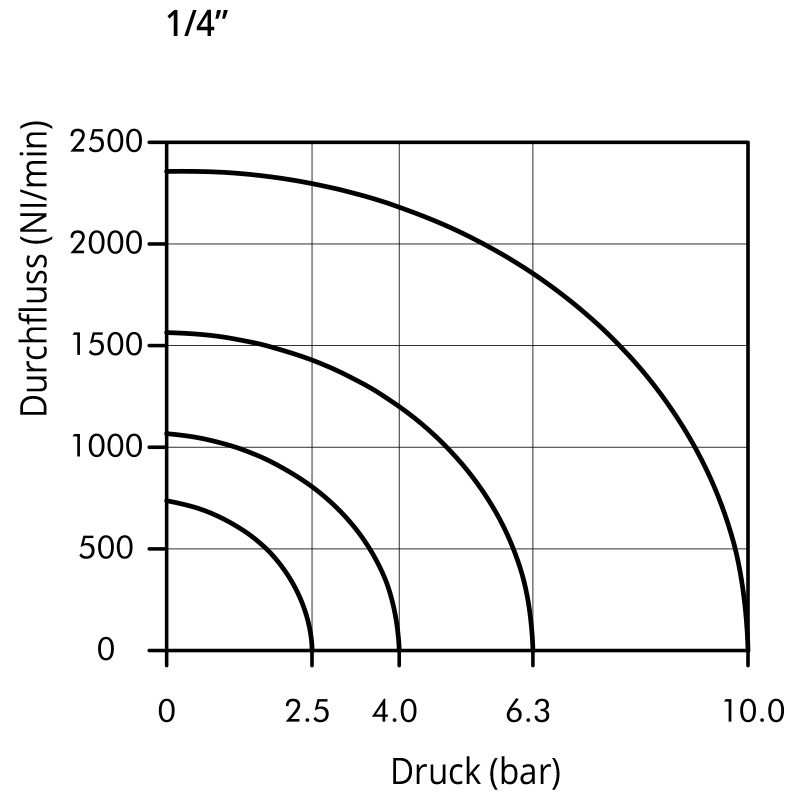

Flow rate in l/min:
1.550 (at 6.3 bar)
Function:
monostable, with mechanical block and guarded
Weight in kg:
1,014
Medium suitability:
Filtered air without lubrication; lubrication, if used, must be continuous
Working temperature:
-10°C – +60°C
Additional information:
When the foot presses on a locking lever, the pedal can be lowered.
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
