Product information "SU17/025/05 PU-hose"

Thanks to the special produc- tion techniques, this hose keeps what it promises, even after frequent use and under extreme conditions. Ultra-Lite is made of polyurethane which is rein-forced by a hose braid made of Dacron Polyester. Unlike conventional 3-layer textile hoses where the indi- vidual layers are not perma- nently bonded to each other, our NycoilUltra-Lite is specially made. The hose is heated and the different layers, textile and PU, melt to form a permanent bond with each other. Thanks to this process, the Ultra-Lite is extremely flexible and, above all, extremely durable. Its high level of flexibility and low weight make for easy handling. The Ultra-Lite retains it properties down to temperatures as low as -40°C.
Outer diameter in mm: 17,4

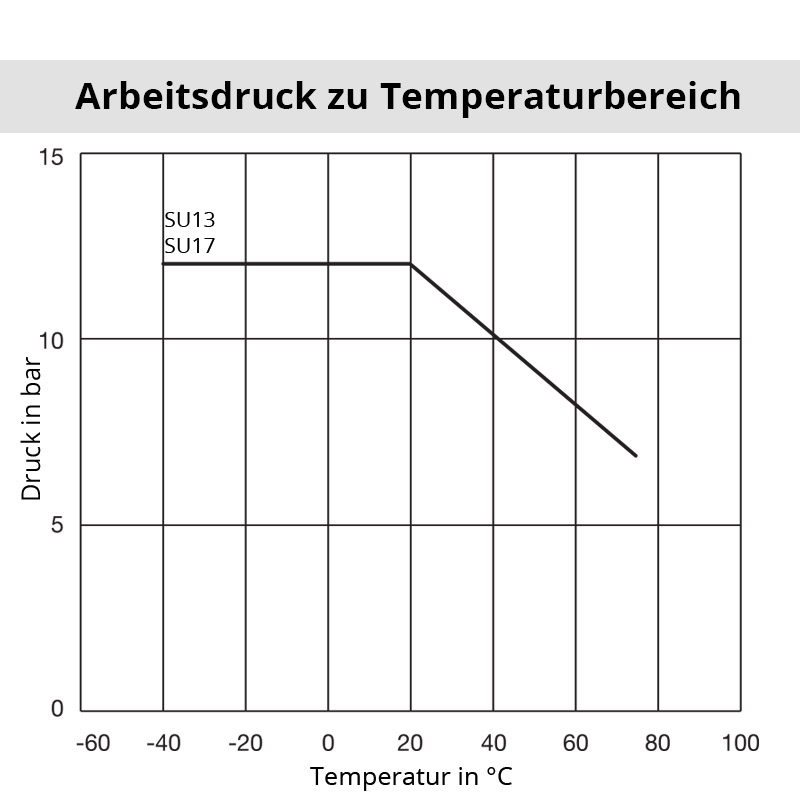

Working pressure: see chart
Weight in kg: 3,495
Material: Polyurethane (PU)
Series: ULTRA-LITE SUPERBRAID
Working temperature: -40°C up to +75°C
Additional information: with woven fabric inlay
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.


Connection 1: without
Connection 2: without
Colour: yellow
Inner diameter: 12,7 mm
Length in m: 25
Hose Inner diameter in mm: 12,7
Wall thickness in mm: 2,35
