Product information "SU13/025/05 PU-hose"

Thanks to the special produc- tion techniques, this hose keeps what it promises, even after frequent use and under extreme conditions. Ultra-Lite is made of polyurethane which is rein-forced by a hose braid made of Dacron Polyester. Unlike conventional 3-layer textile hoses where the indi- vidual layers are not perma- nently bonded to each other, our NycoilUltra-Lite is specially made. The hose is heated and the different layers, textile and PU, melt to form a permanent bond with each other. Thanks to this process, the Ultra-Lite is extremely flexible and, above all, extremely durable. Its high level of flexibility and low weight make for easy handling. The Ultra-Lite retains it properties down to temperatures as low as -40°C.
Outer diameter in mm: 13,0

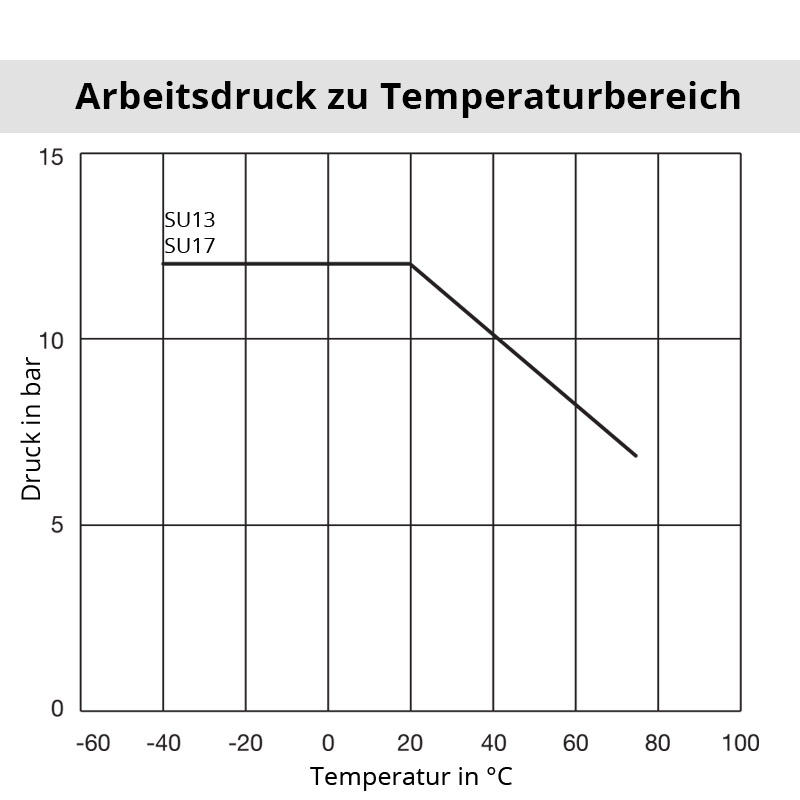

Working pressure: see chart
Weight in kg: 1,945
Material: Polyurethane (PU)
Series: ULTRA-LITE SUPERBRAID
Working temperature: -40°C up to +75°C
Additional information: with woven fabric inlay
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.


Connection 1: without
Connection 2: without
Colour: yellow
Inner diameter: 9,5 mm
Length in m: 25
Hose Inner diameter in mm: 9,5
Wall thickness in mm: 1,75
Skip product gallery

Zubehör

on Stock
1400KAKU13SPN
1400KAKU13SPN Quick coupling with hose nut and spring guard
Quick coupling single shut-off, with hose nut and spring guard 9,5 x 13 mm, nominal diameter 5,5, <35 bar, steel nickel plated, seal NBR

€27.92
Delivery time on request
26SFKU13MXN
26SFKU13MXN Plug with hose nut and spring guard
Plug straight-through, with hose nut and spring guard 9,5 x 13 mm, nominal diameter 7,2, <35 bar, brass nickel plated

€14.45
Delivery time on request
1600KAKU13SPN
1600KAKU13SPN Quick coupling with hose nut and spring guard
Quick coupling single shut-off, with hose nut and spring guard 9,5 x 13 mm, nominal diameter 7,8, <35 bar, steel nickel plated, seal NBR

€27.64
