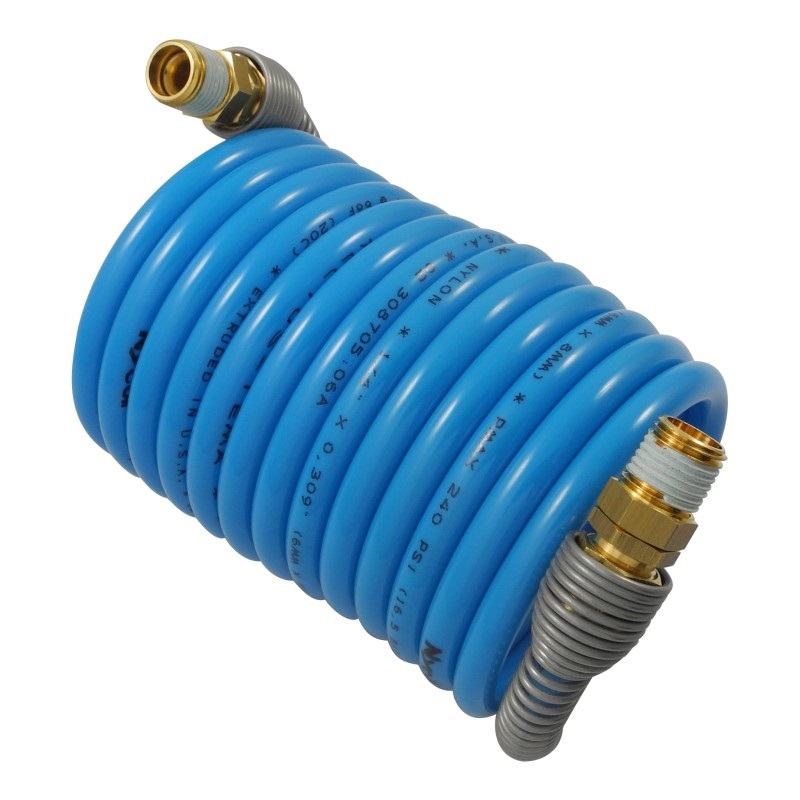

RECTULASTIC hoses from Nycoil for safer, more efficient air power transmission.
| Series: | RECTULASTIC |
| Colour: | blue |
| Material: | Nylon 12 (PA) |
| Working temperature: | -20°C up to +70°C |

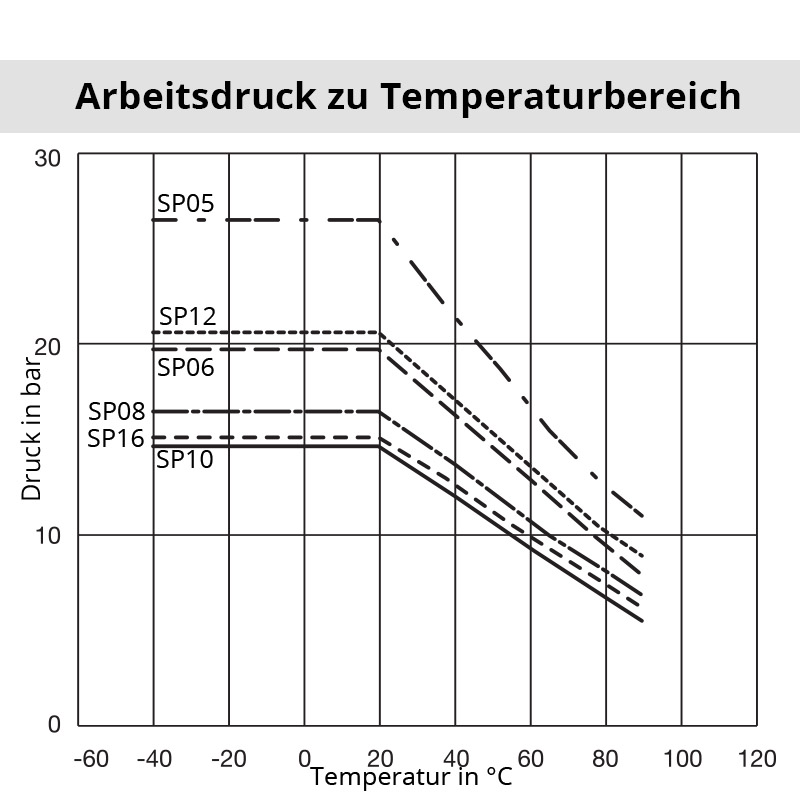

| Working pressure: | see chart |
| Hose outlet: | radial |
| Additional information: | Coiled hoses completely assembled with swivel fittings and spring guard |
| Special feature: | with svivelling thread |
| Advantages: | - quick assembly possible - straight hoses ideal for Push-In-System - light weight - low pressure drop - dfferent colors for identification - good storage possibility due to box packing (straight hoses) - high abrasion resistance - self-retracting. Coiled Hose automatically recoils to a fraction of its working length - small bending diameter - resistant to oil, gasoline, grease and abrasion |
| Physical properties: | - light weight (specific weight 9x lower as copper) _x000D_ - wide temperature range _x000D_ - high resistance against moisture _x000D_ - saltwater insensitive _x000D_ - long service time |
| Mechanical properties: | - high vibration prevention _x000D_ - perfect abrasion resistance _x000D_ - high compression characteristics _x000D_ - low flow reduction for all kind of media _x000D_ - precise tolerances _x000D_ - constant solidity |
| Medium suitability: | - compressed air - lubrication grease/oil - gasoline - hydraulic - vacuum - chemicals (on request) - foodstuff (on request) |
| Weight in kg: | 0,39 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
Available downloads:
