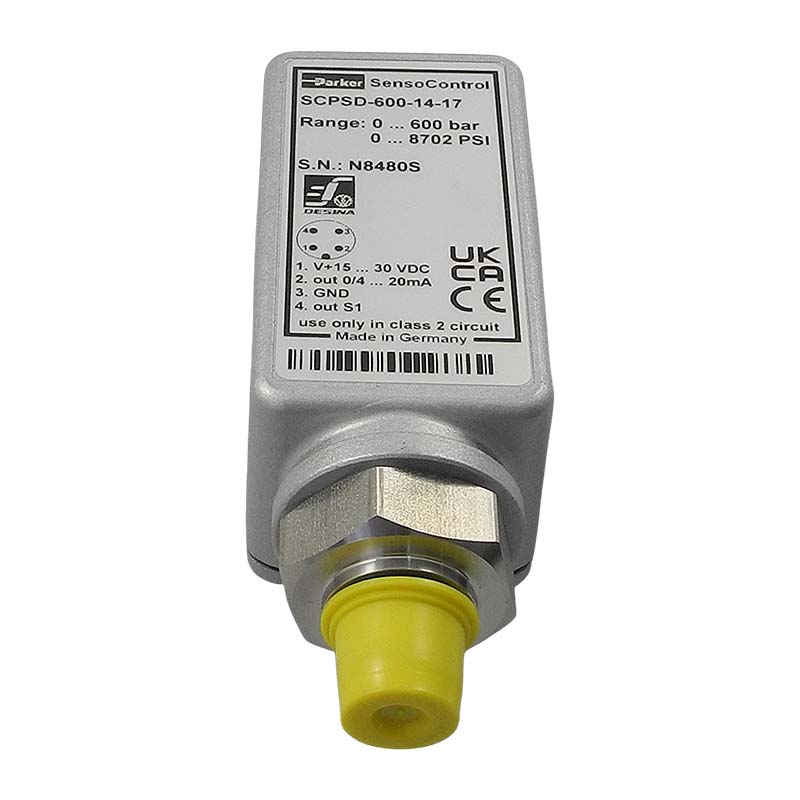

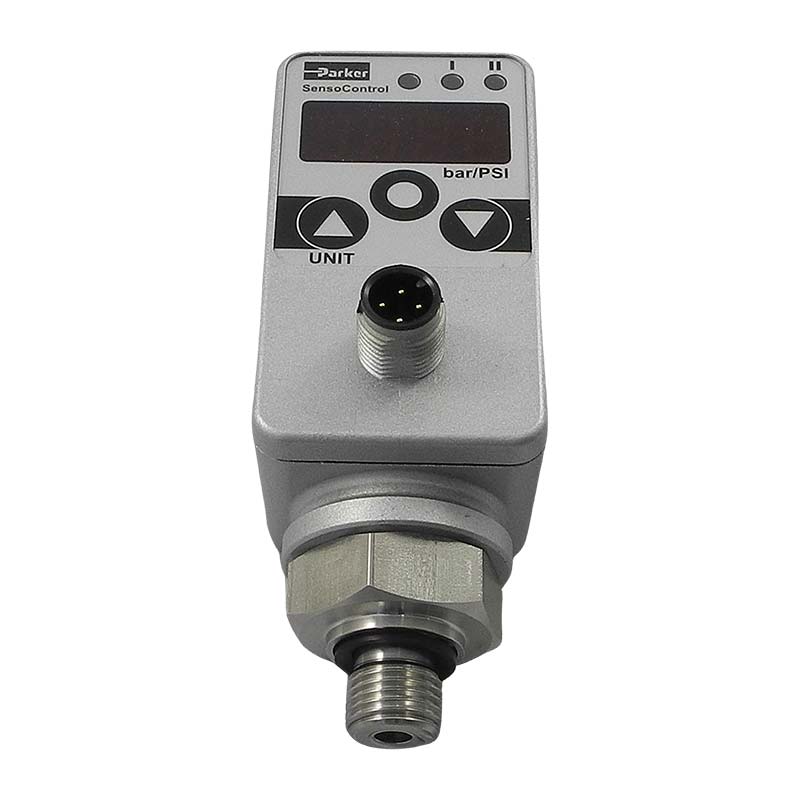

The PressureController combines the functions of a pressure switch, a pressure sensor and a display device:
• Pressure indicator (manometer)
• Switching outputs
• Analog signal
Device characteristics:
• Compact
• Robust
• Reliable
• Ease of use
• Long-term stability
• Excellent noise immunity
• Metal case
• High protection class
• Many variants
• Rotatable
• Analog output
• Password
• MPa, bar, PSI
Protection: | IP 67 |
Material body: | die-cast zinc Z 410; painted |
Precision: | ±0,5 % FS typ.; ±1 % FS max. |
Sampling rate: | ≥ 5 ms |
Repeatability: | ±0,25 % FS |
Weight in kg: | 0,479 |
Connection: | Male thread 1/4" |
Number of outputs: | 1 switching output; with analogue output |
Load change: | ≥ 100 Mio. |
Power supply: | 15…30 VDC nominal 24 VDC; Protection class 3 |
Display: | 4-digit 7-segment LED; red; Digit height 9 mm |
Pressure measurement range: | 0 - 600 bar |
Working temperature: | -20°C to +85°C |
Electrical connection: | Circular connector M12x1; 4 pin |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
