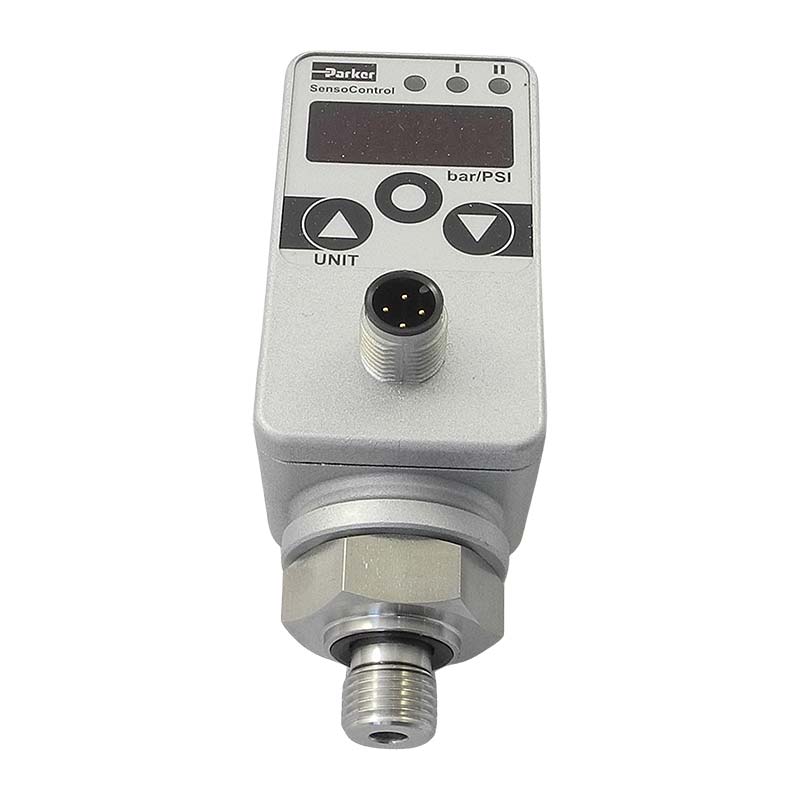

The PressureController combines the functions of a pressure switch, a pressure sensor and a display device:
• Pressure indicator (manometer)
• Switching outputs
• Analog signal
Device characteristics:
• Compact
• Robust
• Reliable
• Ease of use
• Long-term stability
• Excellent noise immunity
• Metal case
• High protection class
• Many variants
• Rotatable
• Analog output
• Password
• MPa, bar, PSI
| Protection: | IP 67 |
| Material body: | die-cast zinc Z 410; painted |
| Precision: | ±0,5 % FS typ.; ±1 % FS max. |
| Sampling rate: | ≥ 5 ms |
| Repeatability: | ±0,25 % FS |
| Weight in kg: | 0,4 |
| Connection: | Male thread 1/4" |
| Number of outputs: | 1 switching output; with analogue output |
| Load change: | ≥ 100 Mio. |
| Power supply: | 15…30 VDC nominal 24 VDC; Protection class 3 |
| Display: | 4-digit 7-segment LED; red; Digit height 9 mm |
| Pressure measurement range: | -1 - 10 bar |
| Working temperature: | -20°C to +85°C |
| Electrical connection: | Circular connector M12x1; 4 pin |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
