Product information "Regulator Syntesi - 5612R142"
Rolling diaphragm regulator. Adjusted pressure stays constant despite pressure variations. Padlockable push-lock knob. Including pressure gauge. Additional ports for pressure gauges, pressure switches or for use as additional air take-offs.
Connection:
Female thread G 1/4"
Seals:
NBR O-Ring
Flow rate in l/min:
1600
Input and output socket:
Brass Ms58 or aluminum, anodized
Adjustment spring:
Steel
Adjustment knob:
Technopolymer
Flange:
Technopolymer
Weight in kg:
0,181
Bell:
Technopolymer
max. inlet pressure:
15
Board:
Technopolymer
Regulator case:
Technopolymer
Regulator screw:
Brass Ms58
Ring nut:
Technopolymer
Series:
Syntesi
Securing plate adjustment knob:
Steel, zinc-plated
Tappet:
Technopolymer
Valve:
Messing Ms58 vulcanized with NBR
Valve spring:
Stainless steel
Closure:
Technopolymer
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

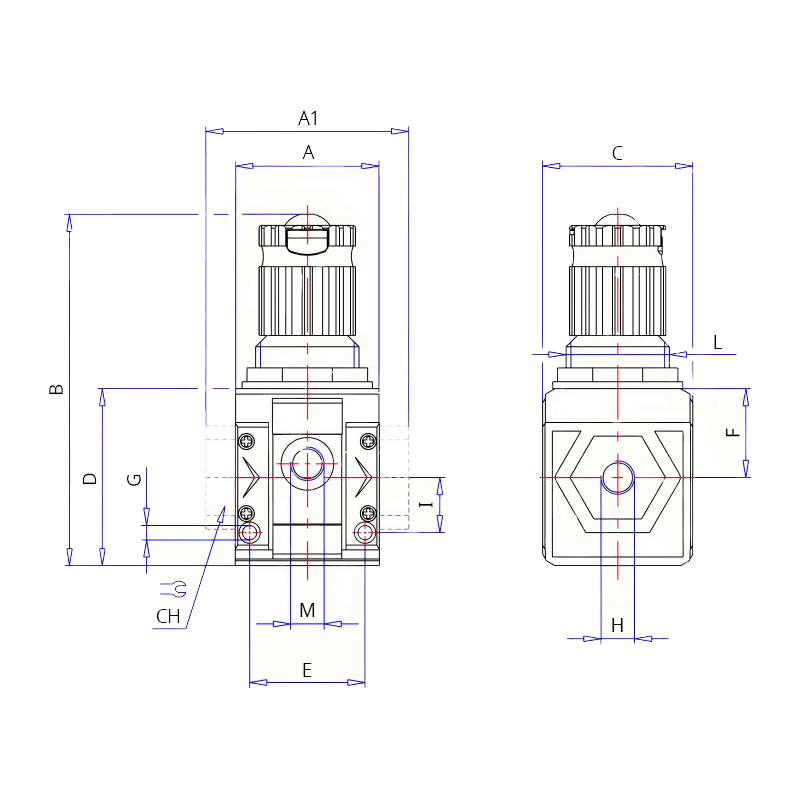

A:
42
B:
102
C:
44
D:
51,5
E:
33,5
F:
25,8
G:
Hole for screws M4
I:
16
L:
M30x1,5
M:
1/8" (Pressure gauge connection or additional air intake)
