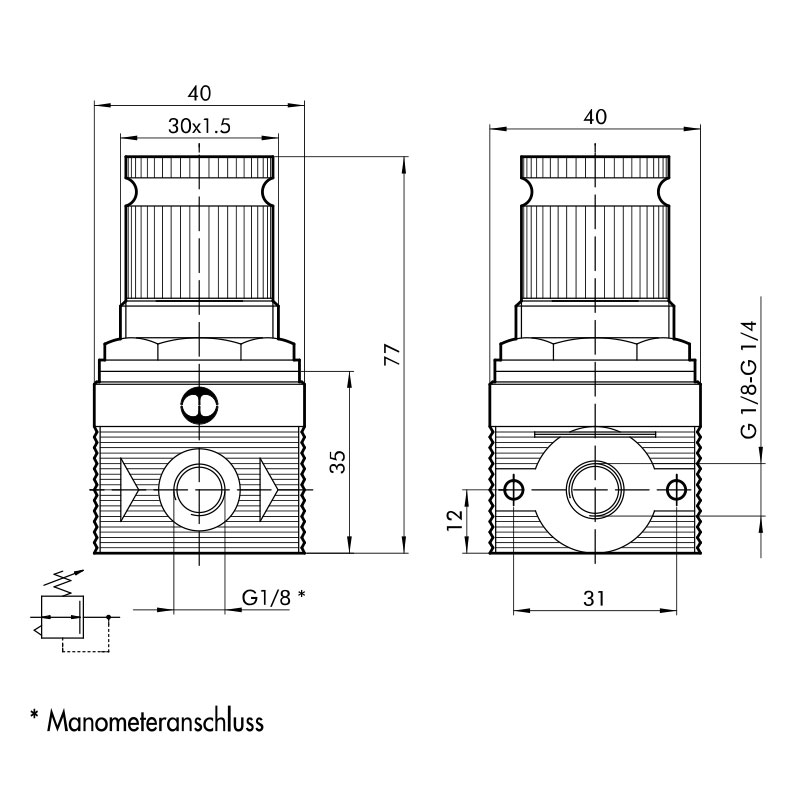

Micro-regulator with rolling diaphragm. • Preset pressure stability as the upstream pressure varies. • High flow rates with reduced pressure drops. • Quick overpressure exhaust. • Including pressure gauge.
Connection:
Female thread G 1/4"
Seals:
NBR
Dome:
Technopolymer
Working pressure:
0-12 bar
Flow rate in l/min:
600
Mounting position:
In any position
Adjustment spring:
Steel
Adjustment knob:
Technopolymer
Weight in kg:
0,08
Adjusting screw:
Brass Ms58
Body:
Technopolymer with threaded sleeve brass Ms58
max. inlet pressure:
13
Installation:
M4 by means of the bracket provided
Regulator screw:
Brass Ms58
Ring nut:
Technopolymer
Series:
Bit
Plug:
Technopolymer
Valve spring:
Stainless steel
Valve part:
Ms58 vulcanized with NBR
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
