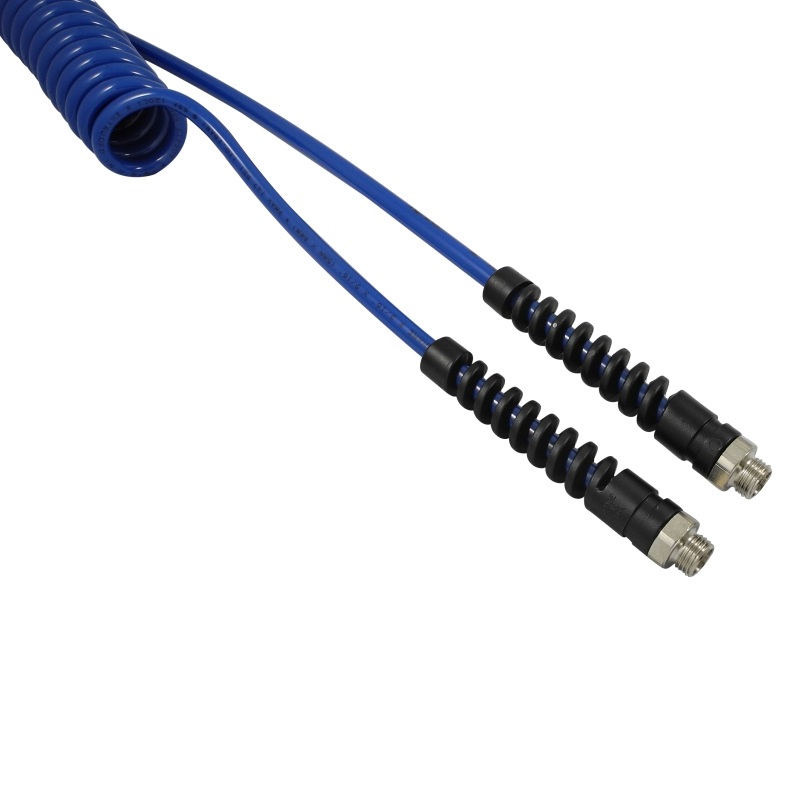

Nycoil polyurethane hose was developed to eliminate the two most common liwithations of nylon self-storing hoses, kinking and abrasion resistance. This lightweight, yet extremely durable hose is ideal for use in tough work areas or highly mobile applications.
| Series: | RECTUFLEX |
| Colour: | blue |
| Material: | Polyurethane (PU) |
| Working temperature: | -20°C up to +70°C |

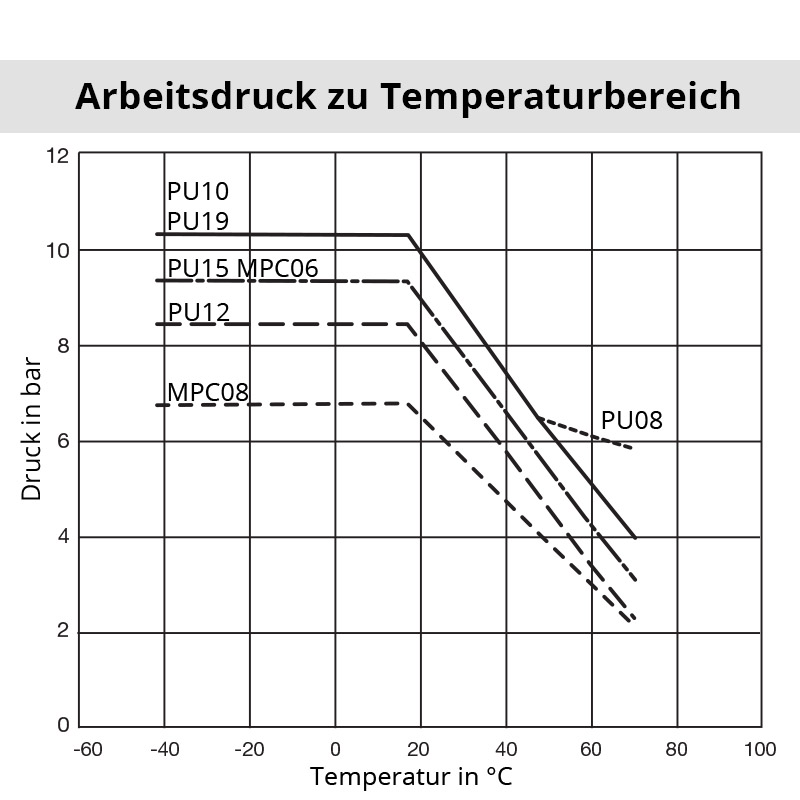

| Working pressure: | see chart |
| Hose outlet: | axial |
| Additional information: | Coiled hoses completely assembled with straight extensions 508 mm and 127mm |
| Special feature: | with svivelling thread |
| Advantages: | - schnelle Montage - geringes Gewicht - geringer Druckverlust - Farbauswahl zur Identifikation - gute Lagermöglichkeit durch Boxverpackung (gerade Schläuche) - hoher Abriebwiderstand - kleiner Biegeradius - extrem knickfest, keine Querschnittsverengung - extreme Flexibilität – Spiral-Schlauch kann im Dauerbetrieb bis zur angegebenen Arbeitslänge ausgezogen werden - max. Arbeitslänge 80 % der Strecklänge (bei Spiralschläuchen) - Spiralschläuche beidseitig mit drehbaren Verschraubungen an abgewinkelten Enden montiert |
| Physical properties: | - light weight (specific weight 9x lower as copper) _x000D_ - wide temperature range _x000D_ - high resistance against moisture _x000D_ - saltwater insensitive _x000D_ - long service time _x000D_ - light resistant _x000D_ - high compression characteristics |
| Mechanical properties: | - high vibration prevention _x000D_ - perfect abrasion resistance _x000D_ - high compression characteristics _x000D_ - low flow reduction for all kind of media _x000D_ - precise tolerances _x000D_ - constant solidity _x000D_ - excellent crack resistance |
| Medium suitability: | - compressed air - lubrication grease/oil - gasoline - hydraulic - vacuum - chemicals (on request) - foodstuff (on request) |
| Hardness: | 95 Shore A |
| Weight in kg: | 1,832 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
