Product information "PU10/275 PU-hose"

The extremely elastic Nycoil polyurethane hose with straight extension (100 mm at the con- necting end, coils in various lengths, 2000 mm at the tool connection end) has the same favourable properties as our conventional coiled hoses: high shape recovery, low looping tendency, higher abrasion re- sistance, outstanding stability with very low empty weight. In addition, the straight extensions guarantee more freedom of movement and easier handling in the hard working process.
Outer diameter in mm: 9,5
Special feature: with straight extension

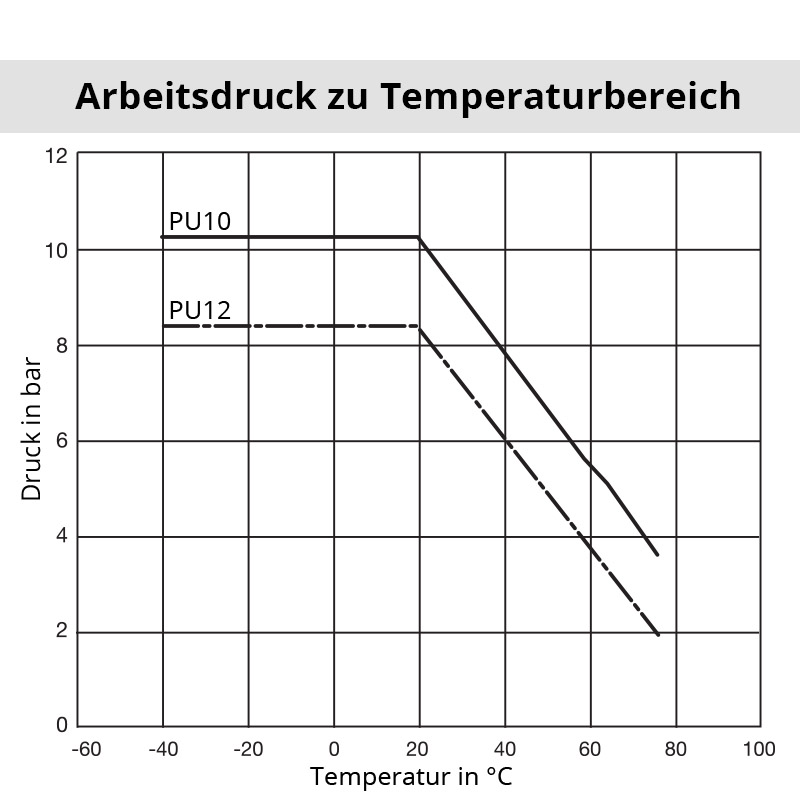

Working pressure: see chart
Weight in kg: 0,3787
Hardness: 95 Shore A
Material: Polyurethane (PU)
Hose outlet: axial
Series: RECTUFLEX
Working temperature: -40°C up to +75°C
Additional information: Polyurethane hose with straight extension
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.


Connection 1: without
Connection 2: without
Colour: blue
Inner diameter: 6,3 mm
Length in m: 7,5
Max. working length in m: 7,5
Hose Inner diameter in mm: 6,3
Wall thickness in mm: 1,6
Outer coil diameter in mm: 60
Skip product gallery

Zubehör

Delivery time on request
26SFKU10MXN
26SFKU10MXN Plug with hose nut and spring guard
Plug straight-through, with hose nut and spring guard 8 x 10 mm, nominal diameter 7,2, <35 bar, brass nickel plated

€14.32
Delivery time on request
Abb. ähnlich Bild zeigt: 25KAKU12SPN
25KAKU10SPN Quick coupling with hose nut and spring guard
Quick coupling single shut-off, with hose nut and spring guard 8 x 10 mm, nominal diameter 7,8, <35 bar, steel nickel plated, seal NBR

€25.78
