PSR Progressive stop ring
From €0.37 *
Available in 1 days, transport time

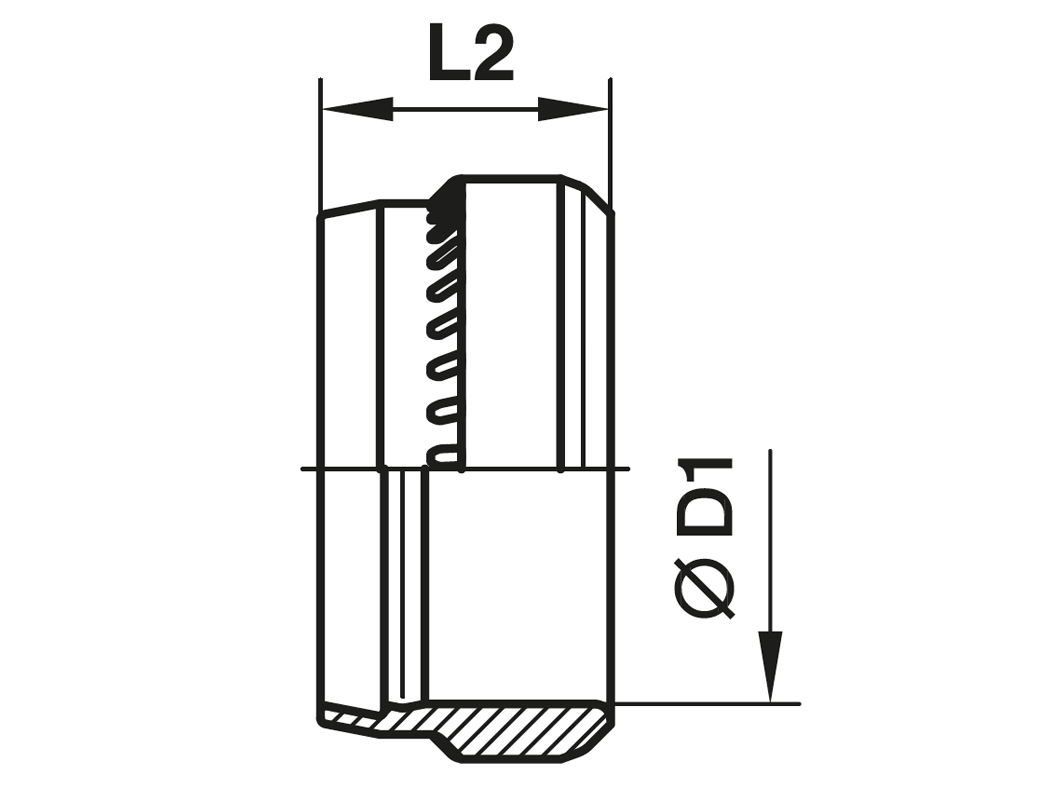

| Product name | Series | ØD1 | L2 | Price | Quantity | |
|---|---|---|---|---|---|---|
| PSR06LX Progressive stop ring | Light | 6 | 9,5 | €0.37 €0.82 (54.88% saved) | Available, delivery time: 1-2 working days | |
| PSR08LX Progressive stop ring | Light | 8 | 9,5 | €0.37 €0.83 (55.42% saved) | Available in 5 days, transport time 1-2 working days | |
| PSR10LX Progressive stop ring | Light | 10 | 10 | €0.45 €1.01 (55.45% saved) | Available, delivery time: 1-2 working days | |
| PSR12LX Progressive stop ring | Light | 12 | 10 | €0.46 €1.05 (56.19% saved) | Available, delivery time: 1-2 working days | |
| PSR15LX Progressive stop ring | Light | 15 | 10 | €0.58 €1.29 (55.04% saved) | Available, delivery time: 1-2 working days | |
| PSR18LX Progressive stop ring | Light | 18 | 10 | €0.83 €1.84 (54.89% saved) | Available, delivery time: 1-2 working days | |
| PSR22LX Progressive stop ring | Light | 22 | 10,5 | €0.98 €2.19 (55.25% saved) | Available in 5 days, transport time 1-2 working days | |
| PSR28LX Progressive stop ring | Light | 28 | 10,5 | €1.19 €2.62 (54.58% saved) | Available in 5 days, transport time 1-2 working days | |
| PSR35LX Progressive stop ring | Light | 35 | 13 | €1.86 €4.14 (55.07% saved) | Available in 5 days, transport time 1-2 working days | |
| PSR42LX Progressive stop ring | Light | 42 | 13 | €2.72 €6.03 (54.89% saved) | Available in 5 days, transport time 1-2 working days | |
| PSR16SX Progressive stop ring | Light | 16 | 10 | €0.94 €2.07 (54.59% saved) | Available in 5 days, transport time 1-2 working days | |
| PSR20SX Progressive stop ring | Light | 20 | 13 | €1.13 €2.53 (55.34% saved) | Available in 5 days, transport time 1-2 working days | |
| PSR25SX Progressive stop ring | Light | 25 | 13 | €1.46 €3.24 (54.94% saved) | Available in 5 days, transport time 1-2 working days | |
| PSR30SX Progressive stop ring | Light | 30 | 13 | €1.87 €4.18 (55.26% saved) | Available in 5 days, transport time 1-2 working days | |
| PSR38SX Progressive stop ring | Light | 38 | 13 | €2.60 €5.76 (54.86% saved) | Available in 5 days, transport time 1-2 working days |
Product information "PSR Progressive stop ring"
Markets:
• Automotive
• Defense
• Energy
• Environment
• Industrial
• Infrastructure
• Machine Tools
• Materials Handling
• Mobile
• Oil and Gas
• Power Generation
• Process
• Transportation
• Water
Applications:
• Suitable for general hydraulic applications.
Features/ benefits:
• Steel and Stainless steel fittings have a high corrosion resistance to aggressive media and environmental influences.
• Depending on the specific requirements, the FM EO-2 functional nut can be delivered with sealing NBR or sealing FKM. This feature increase the range of applications.
| Series: | Light, heavy |
|---|---|
| Specifications met: | DIN ISO 8434 |
| Material: | Galvanized steel |
| Maximum working pressure in bar: | 250-800 |
| Rohraußendurchmesser: | 6-42 mm |
| Working temperature: | -40°C up to 250°C |
