Product information "PG12/025 PU-hose"

Superbraid polyurethane recoil hose is extruded with an inner braid for additional strength. This „integral piece“ process eliminates the need of bonding individual layers of hoses, braiding and cover which tend toseparate overtime due to bending, flexing and pulsating. Superbraid combines the durability of bulkier hoses with the kink resistance and elasti- city of polyurethane to make a tough, long lasting hose that is user friendly. Superbraid can be used with either our barb and sleeve fittings or reusable polyurethane fittings.
Outer diameter in mm: 11,7

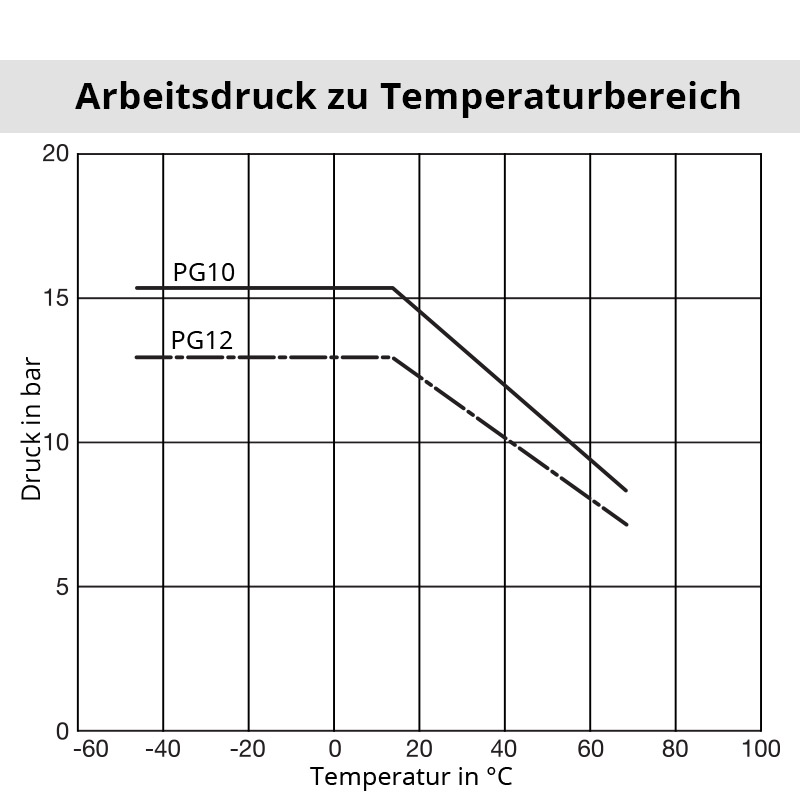

Working pressure: see chart
Weight in kg: 1,663
Hardness: 85 Shore A
Material: Polyurethane (PU)
Series: SUPERBRAID
Working temperature: -40°C up to +75°C
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.


Connection 1: without
Connection 2: without
Colour: lightblue-clear
Inner diameter: 7,9 mm
Length in m: 25
Hose Inner diameter in mm: 7,9
Wall thickness in mm: 1,9
