Product information "Lubricator Syntesi - 5612L102"

Pneumatic lubricator.
360° viewing glass.
Additional ports for pressure gauges, pressure switches or for use as additional air take-offs.
Connection: Female thread G 1/4"
Type of oiling: Oil mist
Seals: NBR O-Ring
Flow rate in l/min: 1700
Input and output socket: Brass Ms58 or aluminum, anodized
Flange: Technopolymer
Case: Technopolymer
Weight in kg: 0,19
max. inlet pressure: 15
Oil filling plug: Technopolymer
Oil adjusting throttle: Brass Ms58
Oil intake manifold: Rislan®
Oiler dome: Technopolymer, transparent
Series: Syntesi
Venturi membrane: NBR
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

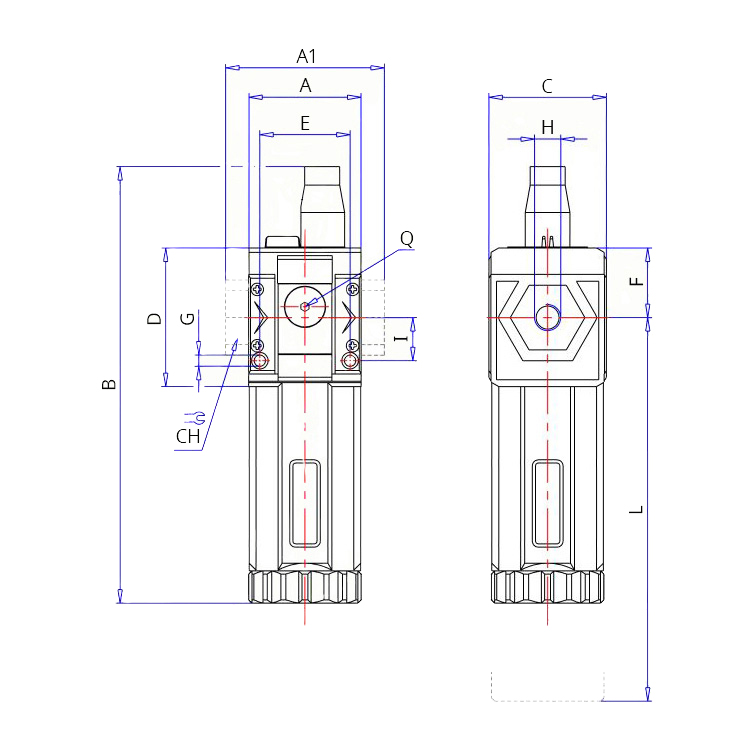

A: 42
B: 162
C: 44
D: 51,5
E: 33,5
F: 25,8
G: Hole for screws M4
I: 16
L: 158
Q: 1/8" (2 additional air intakes)
